2195763-1

2195763-1

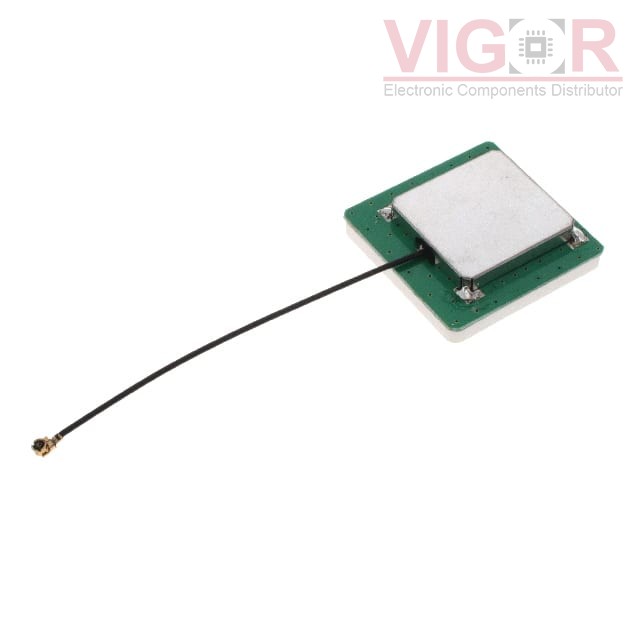

Image is for reference,
please contact us to get the real picture

Part No :

2195763-1

Manufacturer
TE Connectivity AMP Connectors
Description
RF ANT 1.5825GHZ CERAM PATCH ADH
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
2195763-1 PDF
Availability
41 pieces
Unit Price
$21.43000

Current price of 2195763-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2195763-1 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.5825GHz
Frequency Range:1.559GHz ~ 1.606GHz
Antenna Type:Ceramic Patch
Number of Bands:1
VSWR:3
Return Loss:-
Gain:26dBi
Power - Max:-
Features:Cable - 700mm, LNA
Termination:U.FL (UMCC), IPEX MHF1
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.354" (9.00mm)
Applications:GNSS
