ANT-GNSSCP-TH18L1

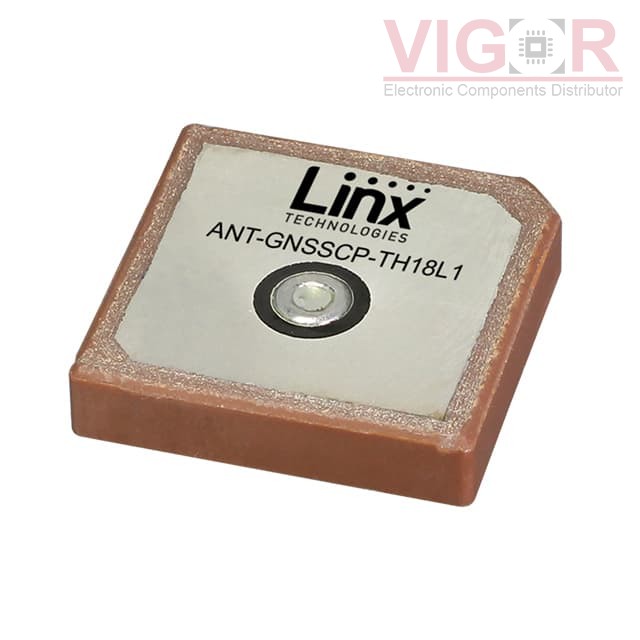

Image is for reference,
please contact us to get the real picture

Part No :: ANT-GNSSCP-TH18L1

Manufacturer: Linx Technologies

Description: RF ANT GNSS PATCH L1 18X18 PIN

Catalog: RF Antennas

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ANT-GNSSCP-TH18L1 PDF

Availability: 0 pieces

Unit Price: ~~$1.89000~~

Current price of ANT-GNSSCP-TH18L1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT-GNSSCP-TH18L1 Specifications

Type	Description
Series:	GNSSCP
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz, 1.602GHz
Frequency Range:	1.567GHz ~ 1.609GHz
Antenna Type:	Ceramic Patch
Number of Bands:	3
VSWR:	2.8, 3.2, 2.9
Return Loss:	-6.5dB, -5.6dB, -6.2dB
Gain:	5.1dBi, 2.8dBi, 4dBi
Power - Max:	8 W
Features:	-
Termination:	Pin
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.157" (4.00mm)
Applications:	Beidou, Galileo, GLONASS, GNSS, GPS

Please confirm the specifications of the products when ordering.
