1513504-1

1513504-1

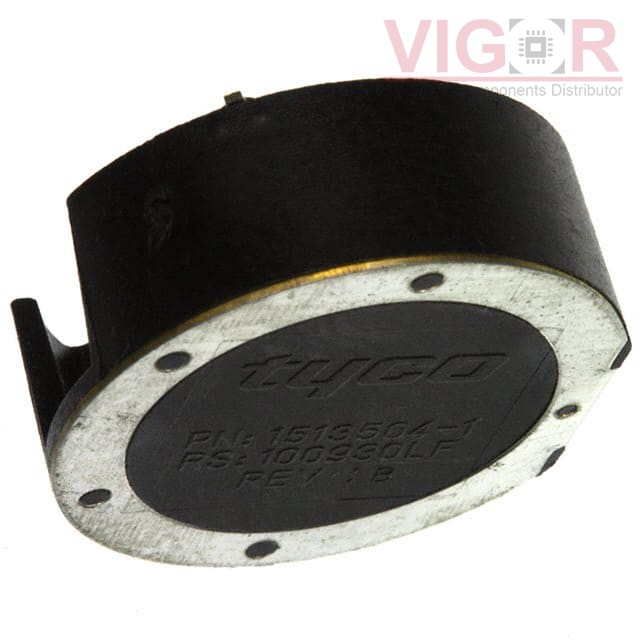

Image is for reference,
please contact us to get the real picture

Part No :

1513504-1

Manufacturer
TE Connectivity AMP Connectors
Description
RF ANT 2.4GHZ PUCK SOLDER SMD
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
1513504-1 PDF
Availability
2575 pieces
Unit Price
$1.93000

Current price of 1513504-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1513504-1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:802.15.4, Bluetooth, WiFi
Frequency Group:UHF (2GHz ~ 3GHz)
Frequency (Center/Band):2.4GHz
Frequency Range:2.4GHz ~ 2.483.5GHz
Antenna Type:Puck
Number of Bands:1
VSWR:2.5
Return Loss:-
Gain:2dBi
Power - Max:10 W
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.238" (6.05mm)
Applications:Bluetooth, WLAN, Zigbee™
