ANT1818B00BT1516S

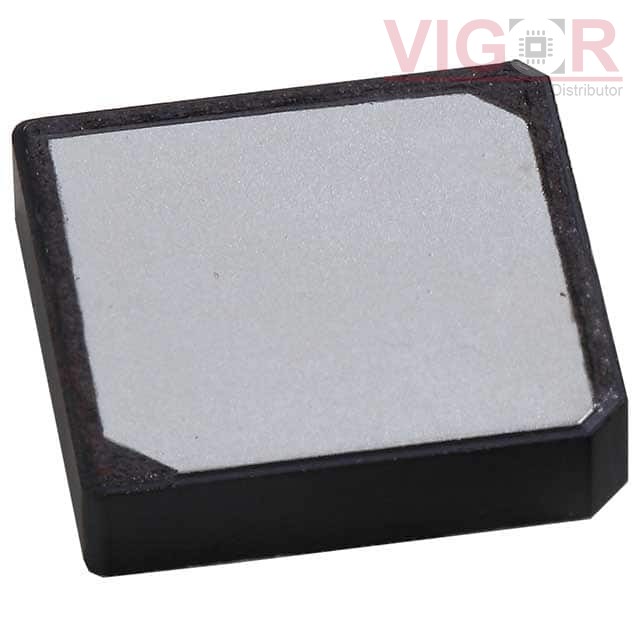

Image is for reference,
please contact us to get the real picture

Part No :: ANT1818B00BT1516S

Manufacturer: Yageo

Description: RF ANT 1.575/1.602GHZ CER PATCH

Catalog: RF Antennas

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ANT1818B00BT1516S PDF

Availability: 0 pieces

Unit Price: ~~$2.71000~~

Current price of ANT1818B00BT1516S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT1818B00BT1516S Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz, 1.602GHz
Frequency Range:	1.575GHz ~ 1.606GHz
Antenna Type:	Ceramic Patch
Number of Bands:	2
VSWR:	2
Return Loss:	-17.801dB, -17.008dB
Gain:	1.89dBi, 2.59dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.157" (4.00mm)
Applications:	GLONASS, GPS

Please confirm the specifications of the products when ordering.
