W3011A

W3011A

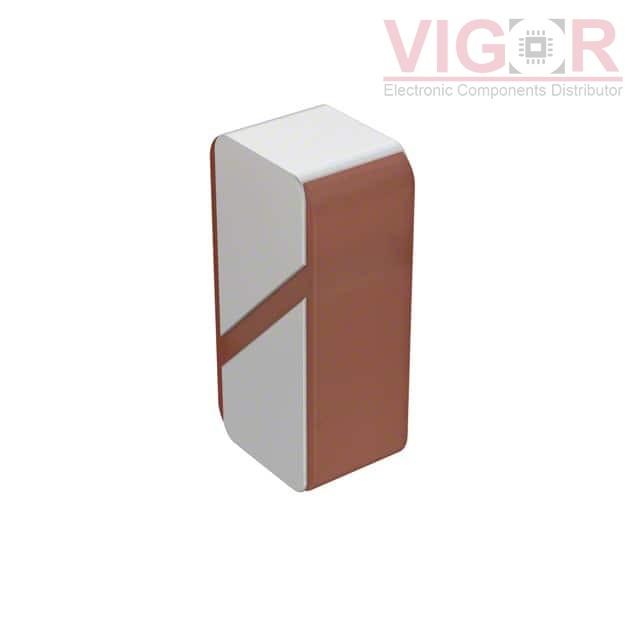

Image is for reference,
please contact us to get the real picture

Part No :

W3011A

Manufacturer
PulseLarsen Antenna
Description
RF ANT 1.575GHZ CHIP SOLDER SMD
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
W3011A PDF
Availability
8541 pieces
Unit Price
$1.53000

Current price of W3011A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

W3011A Specifications
Type Description
Series:Ceramic Chip Antenna
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.561GHz, 1.5755GHz, 1.602GHz
Frequency Range:1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz
Antenna Type:Chip
Number of Bands:3
VSWR:-
Return Loss:-7dB, -10dB, -10dB
Gain:1.3dBi, 2dBi, 2.2dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.043" (1.10mm)
Applications:Beidou, Galileo, GLONASS, GNSS, GPS
