ACAG0301-24505500-T

ACAG0301-24505500-T

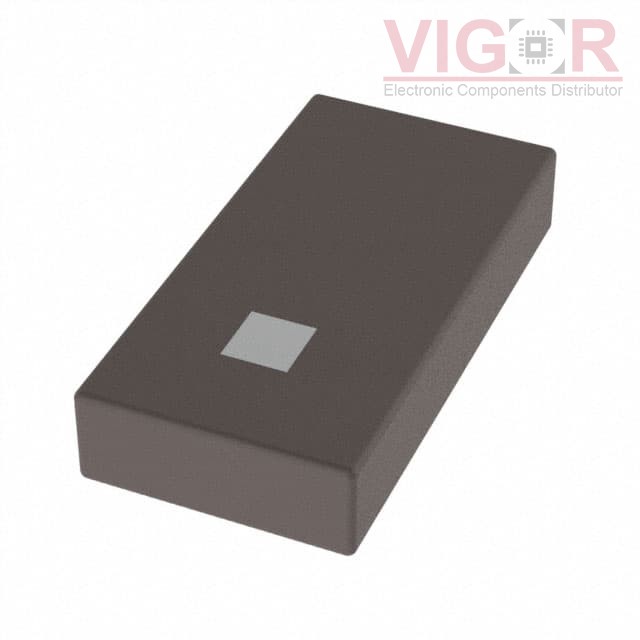

Image is for reference,
please contact us to get the real picture

Part No :

ACAG0301-24505500-T

Manufacturer
Abracon
Description
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACAG0301-24505500-T PDF
Availability
2118 pieces
Unit Price
$1.84000

Current price of ACAG0301-24505500-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACAG0301-24505500-T Specifications
Type Description
Series:ACAG
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:Bluetooth, General ISM, WiFi
Frequency Group:UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):2.4GHz, 5.5GHz
Frequency Range:2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Antenna Type:Chip
Number of Bands:2
VSWR:-
Return Loss:-7dB, -7dB
Gain:2.23dBi, 4.05dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.047" (1.20mm)
Applications:Bluetooth, ISM, Wi-Fi
