DPX165900DT-8125A1

DPX165900DT-8125A1

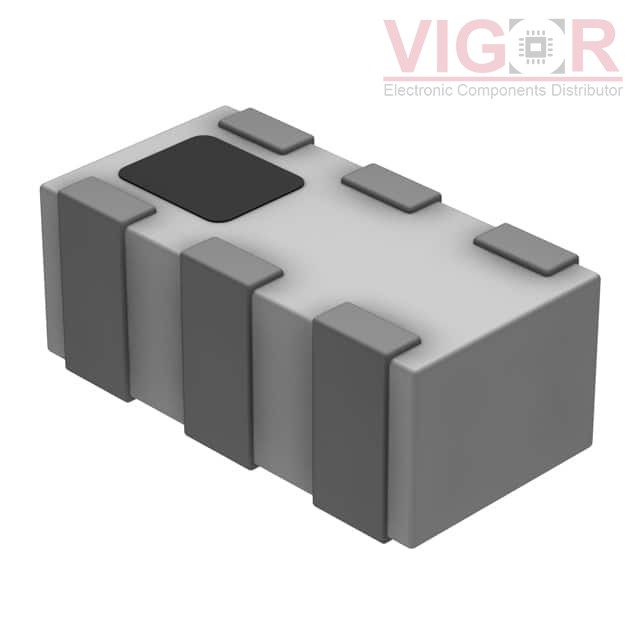

Image is for reference,
please contact us to get the real picture

Part No :

DPX165900DT-8125A1

Manufacturer
TDK Corporation
Description
RF DIPLEXER 2.45GHZ/5.5GHZ 0603
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
DPX165900DT-8125A1 PDF
Availability
2682 pieces
Unit Price
$0.88000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of DPX165900DT-8125A1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

DPX165900DT-8125A1 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Diplexer
Frequency Bands (Low / High):2.4GHz ~ 2.5GHz / 5.1GHz ~ 5.9GHz
Low Band Attenuation (min / max dB):18.00dB / 24.00dB
High Band Attenuation (min / max dB):20.00dB / 33.00dB
Return Loss (Low Band / High Band):22.0dB / 13.0dB
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric), 6 PC Pad
