DPX162170DT-8022B1

DPX162170DT-8022B1

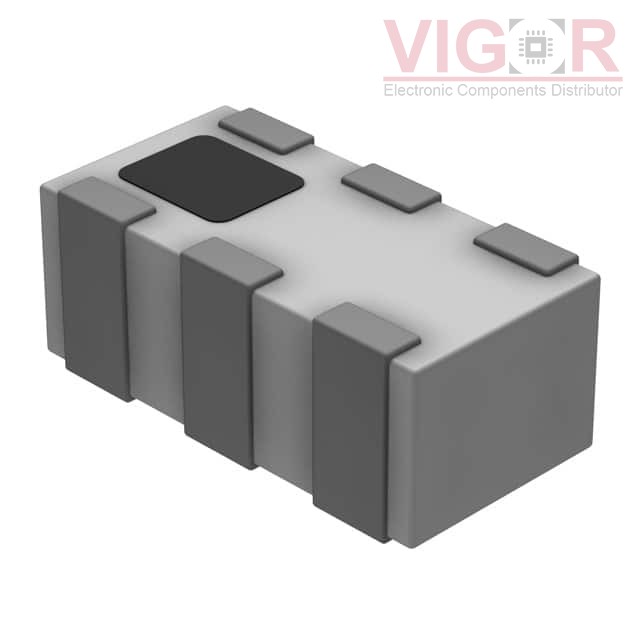

Image is for reference,
please contact us to get the real picture

Part No :

DPX162170DT-8022B1

Manufacturer
TDK Corporation
Description
RF DIPLEXER 832MHZ/1.94GHZ 0603
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DPX162170DT-8022B1 PDF
Availability
2310 pieces
Unit Price
$0.78000

Current price of DPX162170DT-8022B1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX162170DT-8022B1 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Diplexer
Frequency Bands (Low / High):704MHz ~ 960MHz / 1.71GHz ~ 2.17GHz
Low Band Attenuation (min / max dB):15.00dB / 21.00dB
High Band Attenuation (min / max dB):20.00dB / 26.00dB
Return Loss (Low Band / High Band):-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric), 6 PC Pad
