DPX202690DT-4149A2

DPX202690DT-4149A2

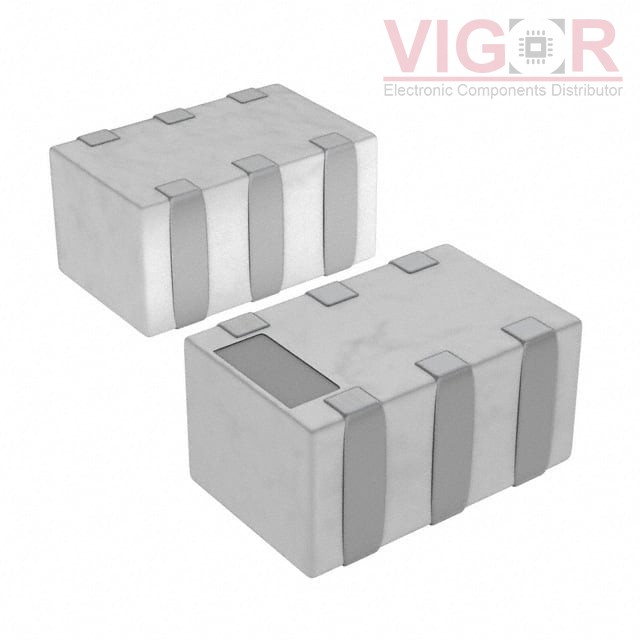

Image is for reference,
please contact us to get the real picture

Part No :

DPX202690DT-4149A2

Manufacturer
TDK Corporation
Description
RF DIPLEXER 832MHZ/2.2GHZ 0805
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DPX202690DT-4149A2 PDF
Availability
116 pieces
Unit Price
$1.11000

Current price of DPX202690DT-4149A2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX202690DT-4149A2 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Diplexer
Frequency Bands (Low / High):704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz
Low Band Attenuation (min / max dB):13.00dB / 17.00dB
High Band Attenuation (min / max dB):17.00dB / 20.00dB
Return Loss (Low Band / High Band):12.0dB / 14.0dB
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric), 6 PC Pad
