DPX315950DT-5006C1

DPX315950DT-5006C1

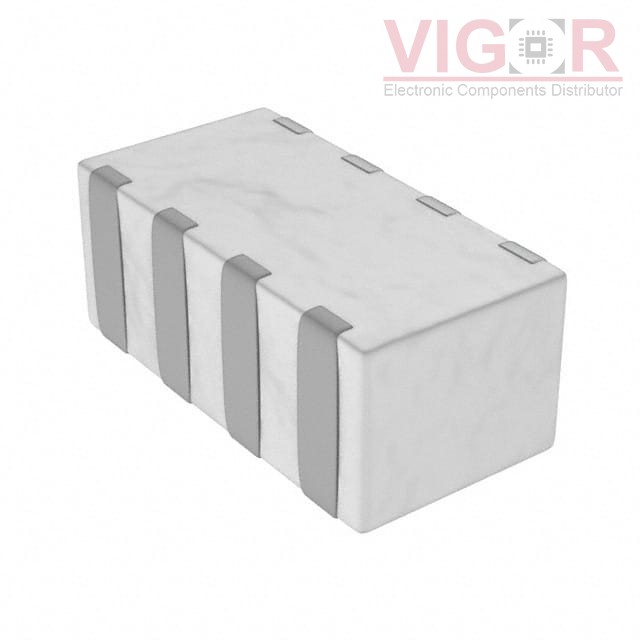

Image is for reference,
please contact us to get the real picture

Part No :

DPX315950DT-5006C1

Manufacturer
TDK Corporation
Description
RF DIPLEXER 2.45/5.475GHZ 1206
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
DPX315950DT-5006C1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of DPX315950DT-5006C1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX315950DT-5006C1 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Diplexer
Frequency Bands (Low / High):2.4GHz ~ 2.5GHz / 5GHz ~ 5.95GHz
Low Band Attenuation (min / max dB):21.00dB / -
High Band Attenuation (min / max dB):21.00dB / -
Return Loss (Low Band / High Band):10.0dB / 9.0dB
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), 8 Leads
