ADGM1004JCPZ-RL7

ADGM1004JCPZ-RL7

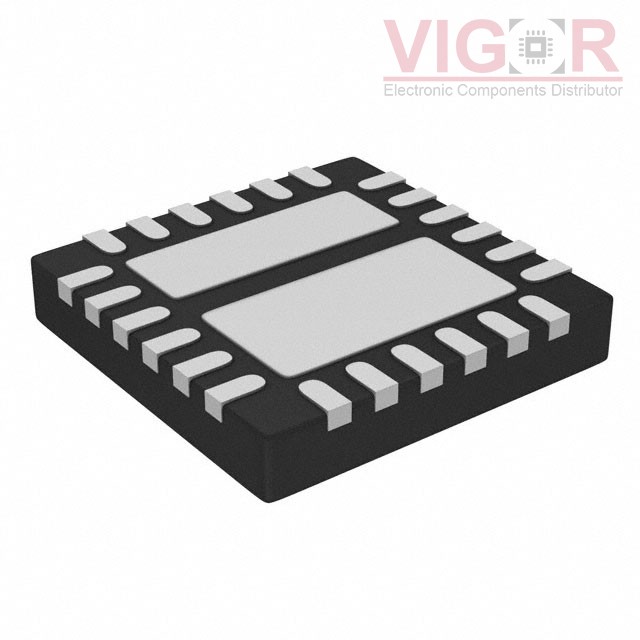

Image is for reference,
please contact us to get the real picture

Part No :

ADGM1004JCPZ-RL7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC RF SWITCH SP4T 24LFCSP
Catalog
RF Switches
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ADGM1004JCPZ-RL7 PDF
Availability
177 pieces
Unit Price
$66.78000

Current price of ADGM1004JCPZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADGM1004JCPZ-RL7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Type:General Purpose
Topology:-
Circuit:SP4T
Frequency Range:0Hz ~ 13GHz
Isolation:19dB
Insertion Loss:0.63dB
Test Frequency:6GHz
P1dB:-
IIP3:67dBm
Features:-
Impedance:50Ohm
Voltage - Supply:3.1V ~ 3.3V
Operating Temperature:0°C ~ 85°C
Package / Case:24-LFQFN Exposed Pad, CSP
Supplier Device Package:24-LFCSP (5x4)
