DA14681-01000U22

DA14681-01000U22

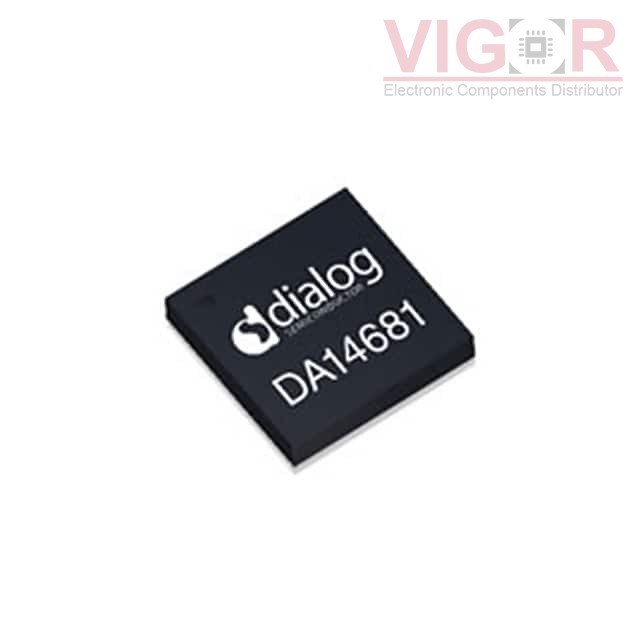

Image is for reference,
please contact us to get the real picture

Part No :

DA14681-01000U22

Manufacturer
Dialog Semiconductor
Description
IC RF TXRX+MCU BLUETOOTH 53UFBGA
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DA14681-01000U22 PDF
Availability
6799 pieces
Unit Price
$4.48000

Current price of DA14681-01000U22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DA14681-01000U22 Specifications
Type Description
Series:SmartBond™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:TxRx + MCU
RF Family/Standard:Bluetooth
Protocol:Bluetooth v4.2
Modulation:-
Frequency:2.4GHz
Data Rate (Max):-
Power - Output:0dBm
Sensitivity:-94dBm
Memory Size:64kB OTP, 128kB ROM, 144kB SRAM
Serial Interfaces:I²C, I²S, PCM, SPI, UART, USB
GPIO:-
Voltage - Supply:1.7V ~ 4.5V
Current - Receiving:-
Current - Transmitting:-
Operating Temperature:-
Mounting Type:Surface Mount
Package / Case:53-UFBGA, WLCSP
Supplier Device Package:-
