SX1236IMLTRT

SX1236IMLTRT

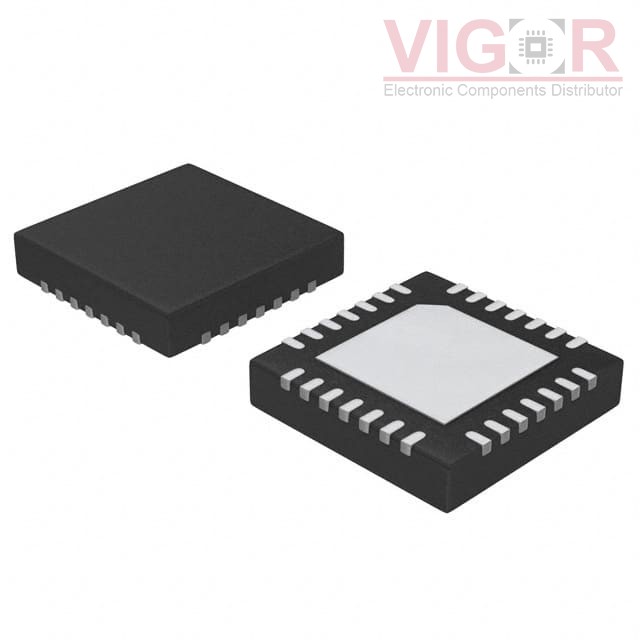

Image is for reference,
please contact us to get the real picture

Part No :

SX1236IMLTRT

Manufacturer
Semtech
Description
IC RF TXRX ISM<1GHZ 28VQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
SX1236IMLTRT PDF
Availability
846 pieces
Unit Price
$5.60000

Current price of SX1236IMLTRT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SX1236IMLTRT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:TxRx Only
RF Family/Standard:General ISM < 1GHz
Protocol:-
Modulation:FSK, GFSK, GMSK, MSK, OOK
Frequency:137MHz ~ 1.02GHz
Data Rate (Max):300kbps
Power - Output:20dBm
Sensitivity:-123dBm
Memory Size:-
Serial Interfaces:SPI
GPIO:6
Voltage - Supply:1.8V ~ 3.7V
Current - Receiving:10.8mA ~ 12mA
Current - Transmitting:20mA ~ 120mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:28-VQFN Exposed Pad
Supplier Device Package:28-QFN (6x6)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
