ADF7020-1BCPZ-RL7

ADF7020-1BCPZ-RL7

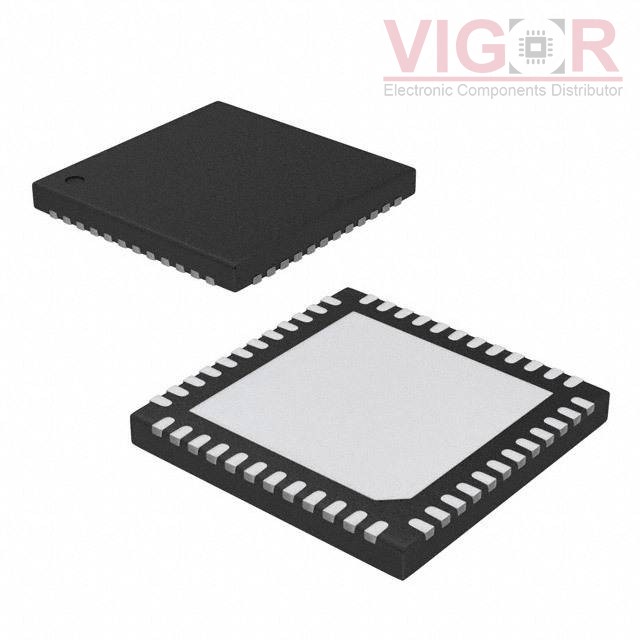

Image is for reference,
please contact us to get the real picture

Part No :

ADF7020-1BCPZ-RL7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC RF TXRX VHF 48VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ADF7020-1BCPZ-RL7 PDF
Availability
1584 pieces
Unit Price
$5.82000

Current price of ADF7020-1BCPZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADF7020-1BCPZ-RL7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:TxRx Only
RF Family/Standard:VHF
Protocol:FM Radio
Modulation:ASK, FSK, GFSK, GOOK, OOK
Frequency:80MHz ~ 650MHz
Data Rate (Max):200kbps
Power - Output:13dBm (Max)
Sensitivity:-119.2dBm
Memory Size:-
Serial Interfaces:SPI
GPIO:-
Voltage - Supply:2.3V ~ 3.6V
Current - Receiving:17.6mA ~ 20.1mA
Current - Transmitting:13mA ~ 21mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:48-VFQFN Exposed Pad, CSP
Supplier Device Package:48-LFCSP (7x7)
