DA14583-01F01AT2

DA14583-01F01AT2

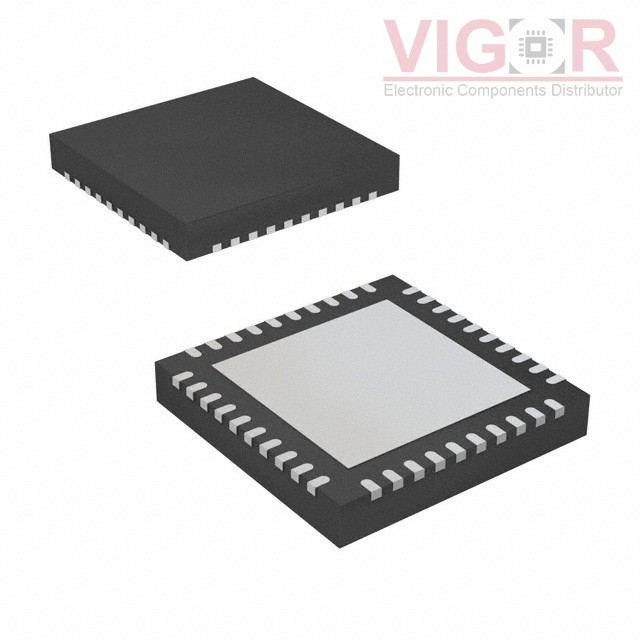

Image is for reference,
please contact us to get the real picture

Part No :

DA14583-01F01AT2

Manufacturer
Dialog Semiconductor
Description
IC RF TXRX+MCU BLUETOOTH 40VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DA14583-01F01AT2 PDF
Availability
1614 pieces
Unit Price
$3.89000

Current price of DA14583-01F01AT2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DA14583-01F01AT2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:TxRx + MCU
RF Family/Standard:Bluetooth
Protocol:Bluetooth v4.1
Modulation:-
Frequency:2.4GHz
Data Rate (Max):-
Power - Output:-1dBm
Sensitivity:-93dBm
Memory Size:1Mb Flash, 32kB OTP, 84kB ROM, 50kB SRAM
Serial Interfaces:I²C, SPI, UART
GPIO:24
Voltage - Supply:2.35V ~ 3.3V
Current - Receiving:3.7mA
Current - Transmitting:3.4mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-QFN (5x5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
