SESUB-PAN-D14580

SESUB-PAN-D14580

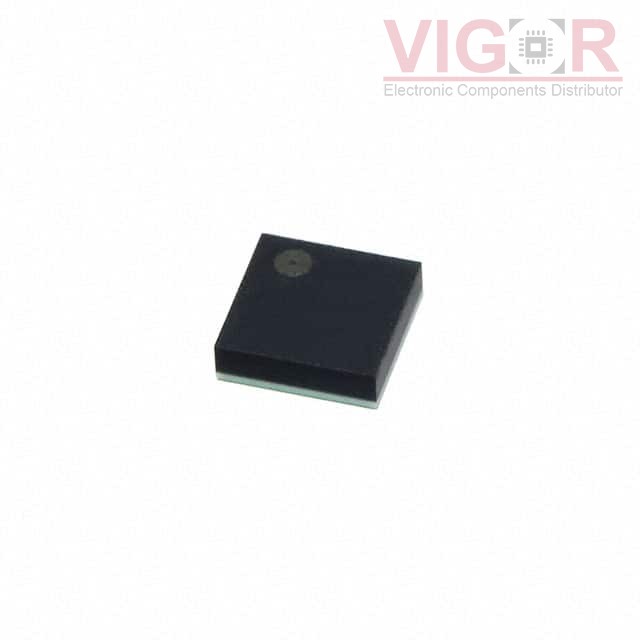

Image is for reference,
please contact us to get the real picture

Part No :

SESUB-PAN-D14580

Manufacturer
TDK Corporation
Description
IC RF TXRX+MCU BLUETOOTH 36-SMD
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
SESUB-PAN-D14580 PDF
Availability
1049 pieces
Unit Price
$7.20000

Current price of SESUB-PAN-D14580 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SESUB-PAN-D14580 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
Type:TxRx + MCU
RF Family/Standard:Bluetooth
Protocol:Bluetooth v4.1
Modulation:-
Frequency:2.4GHz
Data Rate (Max):-
Power - Output:0dBm
Sensitivity:-94dBm
Memory Size:32kB OTP, 84kB ROM, 50kB SRAM
Serial Interfaces:I²C, SPI, UART
GPIO:12
Voltage - Supply:2.35V ~ 3.3V
Current - Receiving:5.4mA
Current - Transmitting:5mA
Operating Temperature:-20°C ~ 70°C
Mounting Type:Surface Mount
Package / Case:36-SMD Module
Supplier Device Package:-
