DA14580-01AT1

DA14580-01AT1

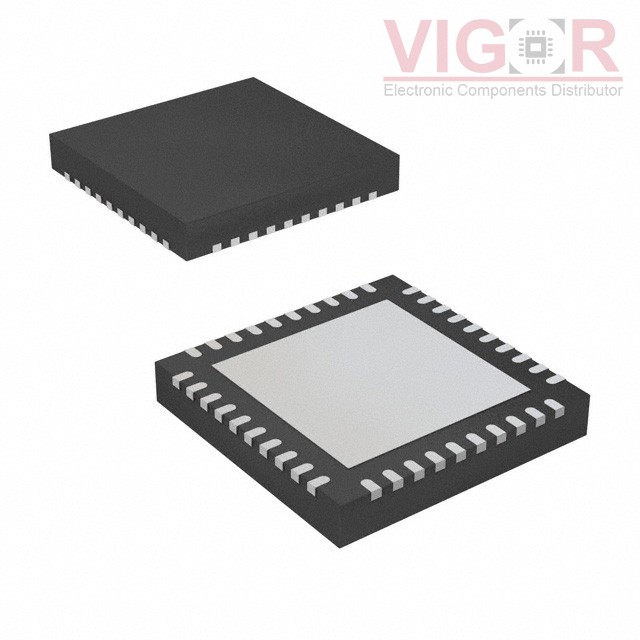

Image is for reference,
please contact us to get the real picture

Part No :

DA14580-01AT1

Manufacturer
Dialog Semiconductor
Description
IC RF TXRX+MCU BLUETOOTH 40VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
DA14580-01AT1 PDF
Availability
0 pieces
Unit Price
$2.03500

Current price of DA14580-01AT1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DA14580-01AT1 Specifications
Type Description
Series:-
Package:Tray
Part Status:Not For New Designs
Type:TxRx + MCU
RF Family/Standard:Bluetooth
Protocol:Bluetooth v4.2
Modulation:-
Frequency:2.4GHz
Data Rate (Max):-
Power - Output:0dBm
Sensitivity:-93dBm
Memory Size:32kB OTP, 84kB ROM, 50kB SRAM
Serial Interfaces:I²C, SPI, UART
GPIO:32
Voltage - Supply:3.3V
Current - Receiving:3.7mA
Current - Transmitting:3.4mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-QFN (5x5)
