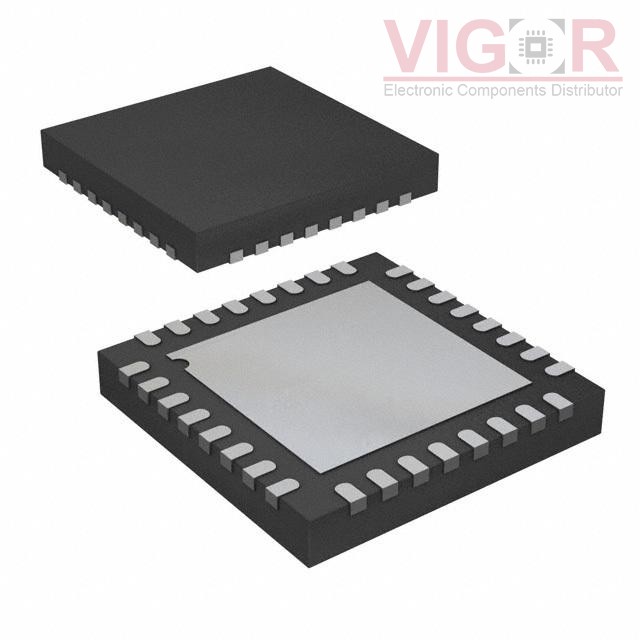

ADF7242BCPZ

ADF7242BCPZ

Image is for reference,
please contact us to get the real picture

Part No :

ADF7242BCPZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC RF TXRX+MCU 802.15.4 32WFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ADF7242BCPZ PDF
Availability
218 pieces
Unit Price
$5.59000

Current price of ADF7242BCPZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADF7242BCPZ Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:TxRx + MCU
RF Family/Standard:802.15.4
Protocol:-
Modulation:DSSS, GSK, GFSK, GMSK, MSK, O-QPSK
Frequency:2.4GHz
Data Rate (Max):2Mbps
Power - Output:4.8dBm
Sensitivity:-96dBm
Memory Size:4kB ROM, 2.5kB RAM
Serial Interfaces:SPI
GPIO:7
Voltage - Supply:1.8V ~ 3.6V
Current - Receiving:19mA
Current - Transmitting:16.5mA ~ 25mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:32-WFQFN Exposed Pad, CSP
Supplier Device Package:32-LFCSP-WQ (5x5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AFE7988IABJ

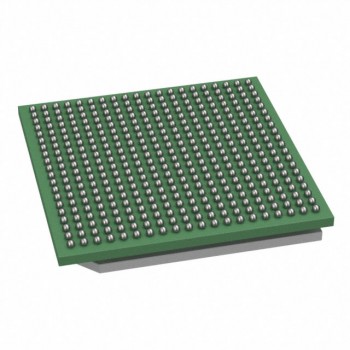

AFE7988IABJ

4T4R DUAL-BAND RF SAMPLING
HOT SX1212IWLTRT

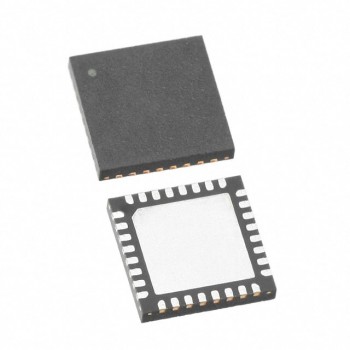

SX1212IWLTRT

IC RF TXRX ISM<1GHZ 32WFQFN
HOT NCH-RSL10-101S51-ACG

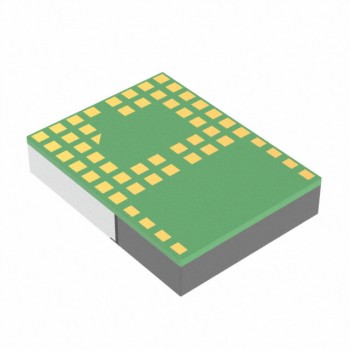

NCH-RSL10-101S51-ACG
