MAX2820ETM+T

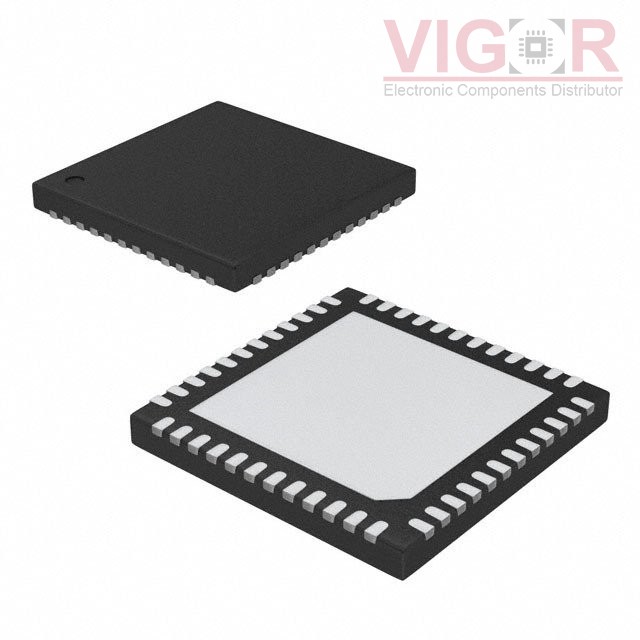

Image is for reference,
please contact us to get the real picture

Part No :: MAX2820ETM+T

Manufacturer: Maxim Integrated

Description: IC RF TXRX WIFI 48WFQFN

Catalog: RF Transceiver ICs

Shipped from: HK warehouse

Expected Shipping Date: Aug 12 - Aug 16 2025

DataSheet: MAX2820ETM+T PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MAX2820ETM+T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX2820ETM+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	TxRx Only
RF Family/Standard:	WiFi
Protocol:	802.11b
Modulation:	CCK
Frequency:	2.4GHz
Data Rate (Max):	22Mbps
Power - Output:	3dBm
Sensitivity:	-97dBm
Memory Size:	-
Serial Interfaces:	SPI
GPIO:	-
Voltage - Supply:	2.7V ~ 3.6V
Current - Receiving:	80mA
Current - Transmitting:	70mA
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	48-WFQFN Exposed Pad
Supplier Device Package:	48-TQFN (7x7)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SI4201-GM

IC RF TXRX CELLULAR 20VFQFN

HOT

MC33696FCAER2

IC RF TXRX ISM<1GHZ 32VFQFN

HOT

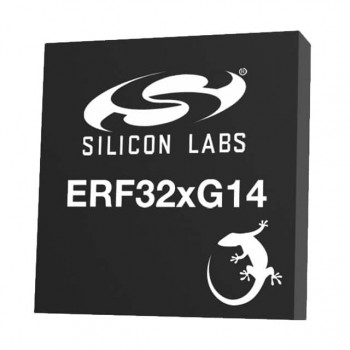

EFR32BG14P532F256GM32-BR
