JN5169-001-M06-2Z

JN5169-001-M06-2Z

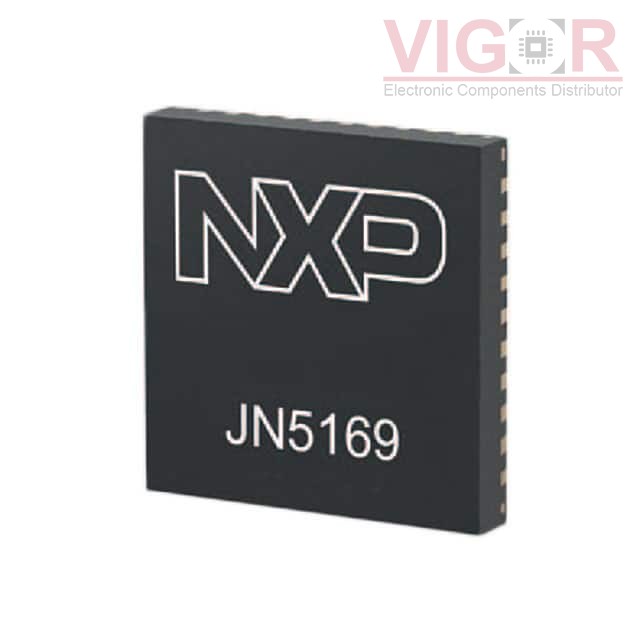

Image is for reference,
please contact us to get the real picture

Part No :

JN5169-001-M06-2Z

Manufacturer
NXP Semiconductors
Description
RX TXRX MODULE 802.15.4 U.FL SMD
Catalog
RF Transceiver Modules and Modems
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
JN5169-001-M06-2Z PDF
Availability
0 pieces
Unit Price
$19.27128

Current price of JN5169-001-M06-2Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN5169-001-M06-2Z Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
RF Family/Standard:802.15.4
Protocol:Zigbee®
Modulation:-
Frequency:2.4GHz ~ 2.5GHz
Data Rate:-
Power - Output:10dBm
Sensitivity:-96dBm
Serial Interfaces:I²C, SPI, UART
Antenna Type:Antenna Not Included, U.FL
Utilized IC / Part:-
Memory Size:512kB Flash, 4kB EEPROM, 32kB RAM
Voltage - Supply:2V ~ 3.6V
Current - Receiving:21.5mA
Current - Transmitting:153mA
Mounting Type:Surface Mount
Operating Temperature:-40°C ~ 85°C
Package / Case:27-SMD Module
