ATZB-S1-256-3-0-CR

ATZB-S1-256-3-0-CR

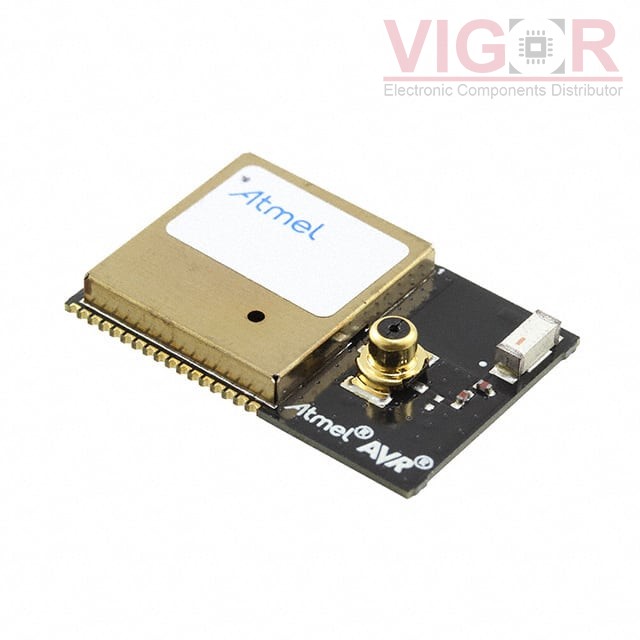

Image is for reference,
please contact us to get the real picture

Part No :

ATZB-S1-256-3-0-CR

Manufacturer
Roving Networks / Microchip Technology
Description
RX TXRX MODULE 802.15.4 CHIP SMD
Catalog
RF Transceiver Modules and Modems
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ATZB-S1-256-3-0-CR PDF
Availability
1 pieces
Unit Price
$17.75000

Current price of ATZB-S1-256-3-0-CR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATZB-S1-256-3-0-CR Specifications
Type Description
Series:ZigBit™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:802.15.4
Protocol:Zigbee®
Modulation:-
Frequency:2.4GHz
Data Rate:2Mbps
Power - Output:3.5dBm
Sensitivity:-97dBm
Serial Interfaces:ISP, JTAG, SPI, UART, USART
Antenna Type:Integrated, Chip
Utilized IC / Part:-
Memory Size:256kB Flash, 8kB EEPROM, 32kB SRAM
Voltage - Supply:1.8V ~ 3.6V
Current - Receiving:9.6mA ~ 17mA
Current - Transmitting:9.9mA ~ 16.3mA
Mounting Type:Surface Mount
Operating Temperature:-40°C ~ 85°C
Package / Case:Module
