ATA6285N-PNPW

ATA6285N-PNPW

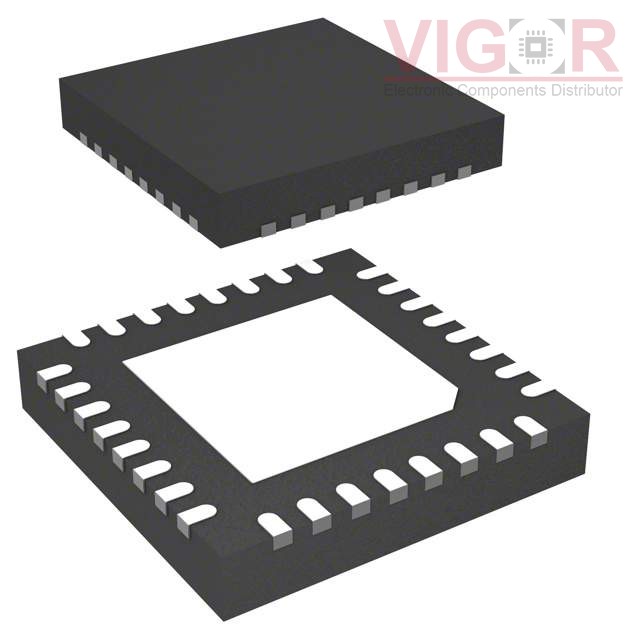

Image is for reference,
please contact us to get the real picture

Part No :

ATA6285N-PNPW

Manufacturer
Roving Networks / Microchip Technology
Description
RF TX IC ASK/FSK 315MHZ 32VFQFN
Catalog
RF Transmitters
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ATA6285N-PNPW PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ATA6285N-PNPW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATA6285N-PNPW Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Frequency:315MHz
Applications:TPM (Tire Pressure Monitor)
Modulation or Protocol:ASK, FSK
Data Rate (Max):20kbps
Power - Output:6dBm
Current - Transmitting:8.5mA
Data Interface:PCB, Surface Mount
Antenna Connector:PCB, Surface Mount
Memory Size:4KB ROM, 1KB RAM, 1KB EEPROM
Features:-
Voltage - Supply:2V ~ 3.6V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:32-VFQFN Exposed Pad
Supplier Device Package:32-QFN (5x5)
