CQ3200

CQ3200

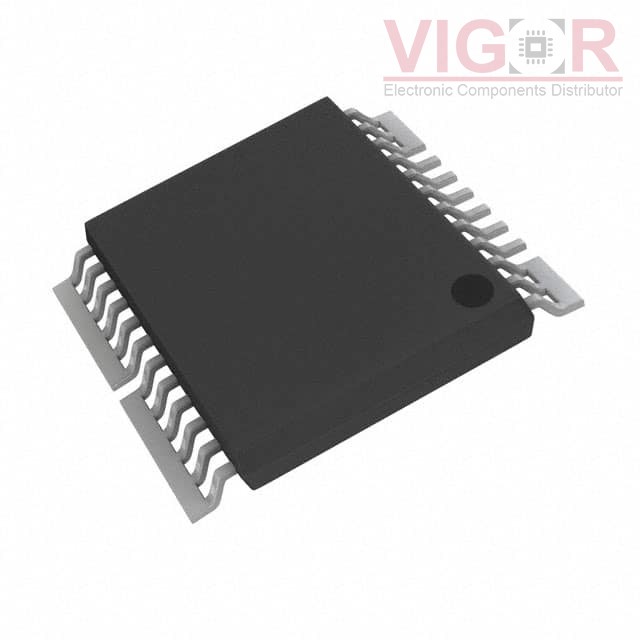

Image is for reference,
please contact us to get the real picture

Part No :

CQ3200

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
CORELESS CURENT SENSOR / 20A W/S
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CQ3200 PDF
Availability
0 pieces
Unit Price
$8.68000

Current price of CQ3200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CQ3200 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:8.5A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:155mV/A
Frequency:1MHz
Linearity:±0.6%
Accuracy:±1.3%
Voltage - Supply:2.7V ~ 3.63V
Response Time:500ns
Current - Supply (Max):9.6mA
Operating Temperature:-40°C ~ 90°C
Polarization:Bidirectional
Mounting Type:Surface Mount
Package / Case:24-LSSOP (0.220", 5.60mm Width), 10 Leads
Supplier Device Package:24-VSOP
