CQ209D

CQ209D

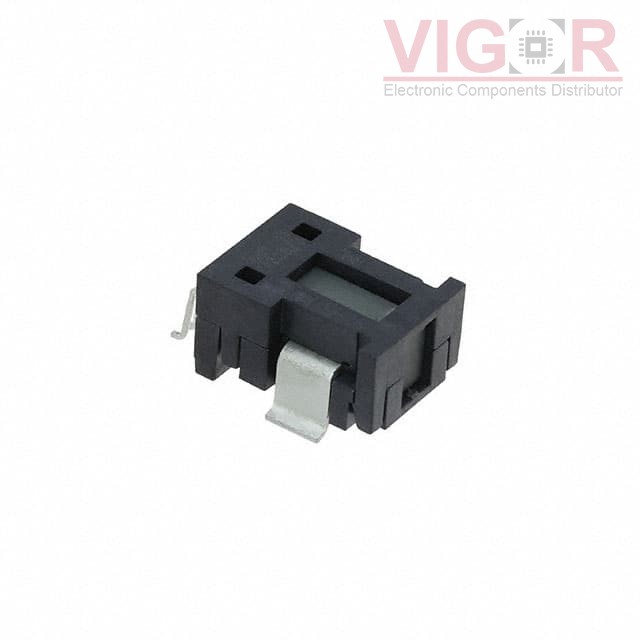

Image is for reference,
please contact us to get the real picture

Part No :

CQ209D

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
SENSOR CURRENT HALL 20A AC/DC
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
CQ209D PDF
Availability
0 pieces
Unit Price
$3.66850

Current price of CQ209D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CQ209D Specifications
Type Description
Series:CQ
Package:Tray
Part Status:Obsolete
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:41A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:50mV/A
Frequency:400kHz
Linearity:±1%
Accuracy:±1%
Voltage - Supply:4.5V ~ 5.5V
Response Time:1µs
Current - Supply (Max):9mA
Operating Temperature:-40°C ~ 90°C
Polarization:Bidirectional
Mounting Type:Through Hole
Package / Case:Module
Supplier Device Package:-
