ACS725KMATR-20AB-T

ACS725KMATR-20AB-T

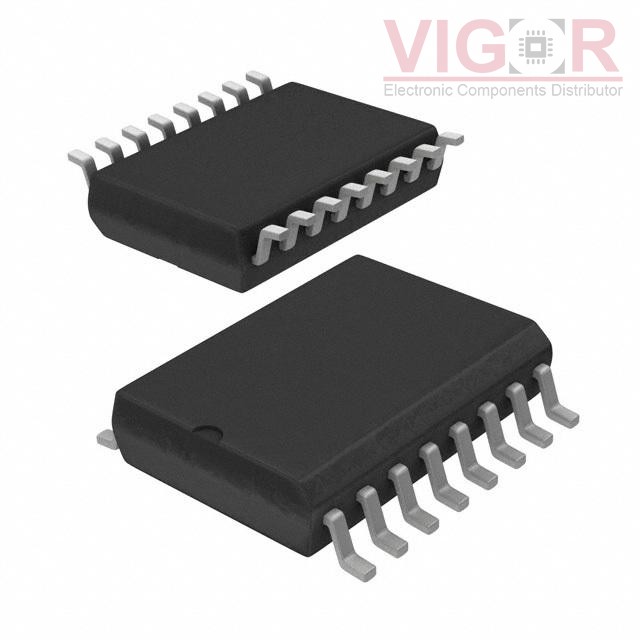

Image is for reference,
please contact us to get the real picture

Part No :

ACS725KMATR-20AB-T

Manufacturer
Allegro MicroSystems
Description
SENSOR CURRENT HALL 20A AC/DC
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ACS725KMATR-20AB-T PDF
Availability
0 pieces
Unit Price
$2.39680

Current price of ACS725KMATR-20AB-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACS725KMATR-20AB-T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Differential
Current - Sensing:20A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:66mV/A
Frequency:DC ~ 120kHz
Linearity:±1%
Accuracy:±1%
Voltage - Supply:3V ~ 3.6V
Response Time:4µs
Current - Supply (Max):14mA
Operating Temperature:-40°C ~ 125°C
Polarization:Bidirectional
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
