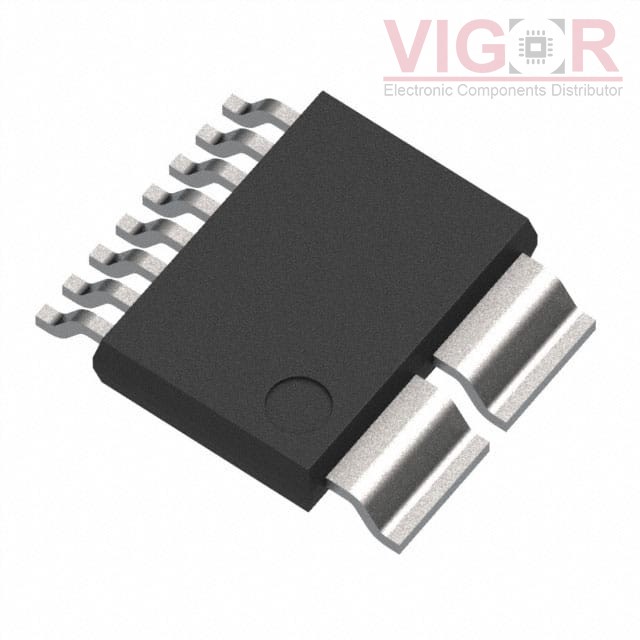

CZ3AG5

Image is for reference,
please contact us to get the real picture

Part No :

CZ3AG5

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
3V OUTPUT ACCURATE CORELESS CURR
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
CZ3AG5 PDF
Availability
0 pieces
Unit Price
$9.18000

Current price of CZ3AG5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:CZ
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:58.3A
Number of Channels:1
Output:Voltage
Sensitivity:24mV/A
Frequency:-
Linearity:±0.6%
Accuracy:±2.1%
Voltage - Supply:4.5V ~ 5.5V
Response Time:3.6µs
Current - Supply (Max):17mA (Typ)
Operating Temperature:-40°C ~ 85°C (TA)
Polarization:Bidirectional
Mounting Type:Surface Mount
Package / Case:16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Supplier Device Package:-
