CQ320A

CQ320A

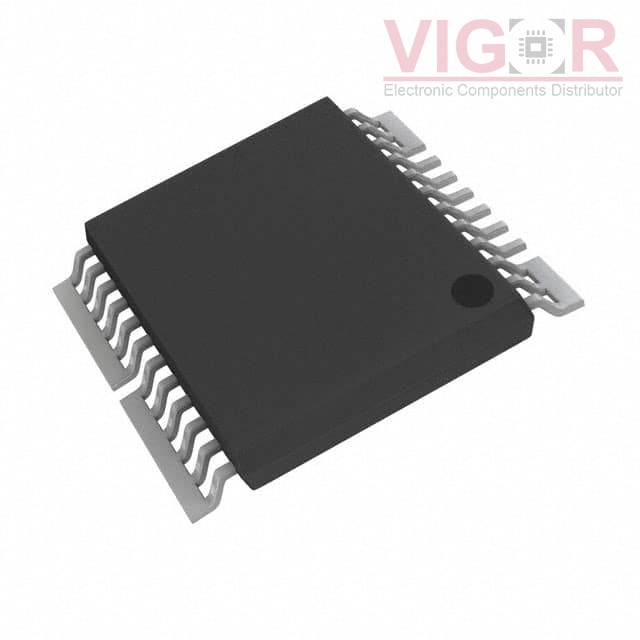

Image is for reference,
please contact us to get the real picture

Part No :

CQ320A

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
CORELESS CURENT SENSOR / 20A W/S
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CQ320A PDF
Availability
742 pieces
Unit Price
$8.68000

Current price of CQ320A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CQ320A Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:29.3A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:45mV/A
Frequency:-
Linearity:-
Accuracy:±1.3%
Voltage - Supply:3.3V
Response Time:0.5µs
Current - Supply (Max):6.2mA
Operating Temperature:-40°C ~ 90°C
Polarization:Bidirectional
Mounting Type:Surface Mount
Package / Case:24-LSSOP (0.220", 5.60mm Width), 10 Leads
Supplier Device Package:24-VSOP
