CS1505B

CS1505B

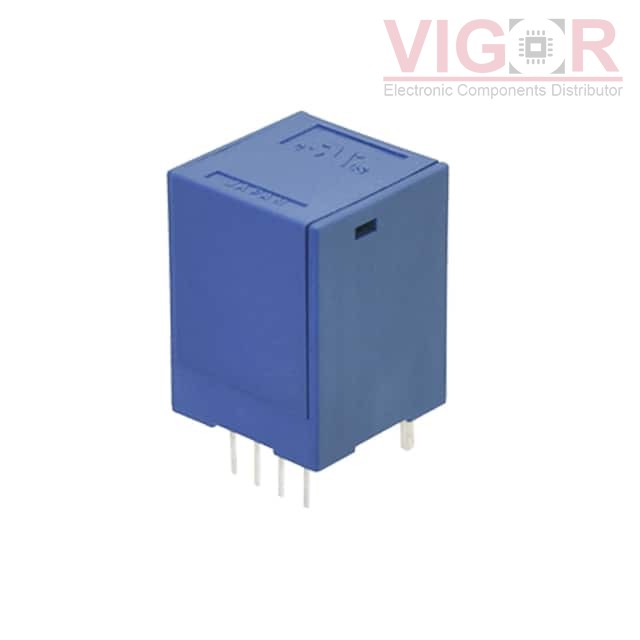

Image is for reference,
please contact us to get the real picture

Part No :

CS1505B

Manufacturer
CUI Devices
Description
CURRENT SENSOR,OPEN LOOP,15A,+5V
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CS1505B PDF
Availability
30 pieces
Unit Price
$26.47000

Current price of CS1505B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS1505B Specifications
Type Description
Series:CSXX05B
Package:Tray
Part Status:Active
For Measuring:AC
Sensor Type:Open Loop
Current - Sensing:15A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:-
Frequency:DC ~ 40kHz
Linearity:±0.5%
Accuracy:±2.2%
Voltage - Supply:4.75V ~ 5.25V
Response Time:7µs
Current - Supply (Max):25mA
Operating Temperature:-10°C ~ 75°C
Polarization:Bidirectional
Mounting Type:Through Hole
Package / Case:Module
Supplier Device Package:-
