ACS770LCB-100U-PSF-T

ACS770LCB-100U-PSF-T

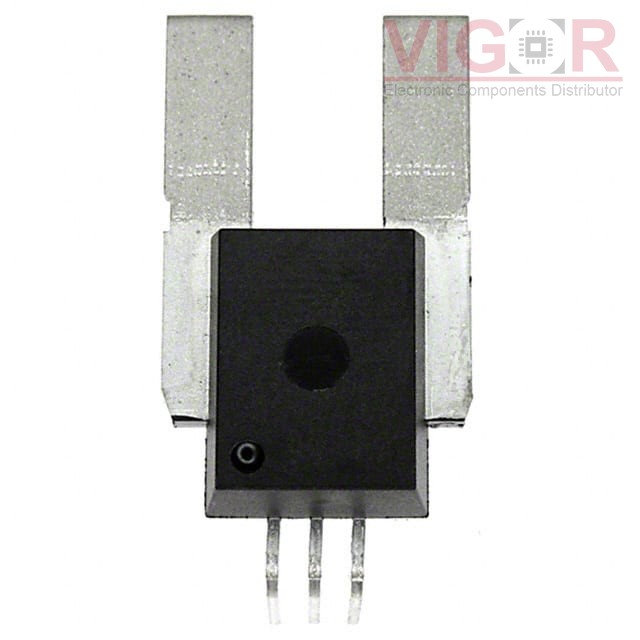

Image is for reference,
please contact us to get the real picture

Part No :

ACS770LCB-100U-PSF-T

Manufacturer
Allegro MicroSystems
Description
LINEAR CURRENT SENSOR
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ACS770LCB-100U-PSF-T PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ACS770LCB-100U-PSF-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACS770LCB-100U-PSF-T Specifications
Type Description
Series:ACS770
Package:Tube
Part Status:Obsolete
For Measuring:DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:100A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:40mV/A
Frequency:DC ~ 120kHz
Linearity:±1%
Accuracy:±0.6%
Voltage - Supply:5V
Response Time:4.6µs
Current - Supply (Max):15mA
Operating Temperature:-40°C ~ 150°C
Polarization:Unidirectional
Mounting Type:Through Hole
Package / Case:5-CB Formed Leads, PSF
Supplier Device Package:5-CB Module
