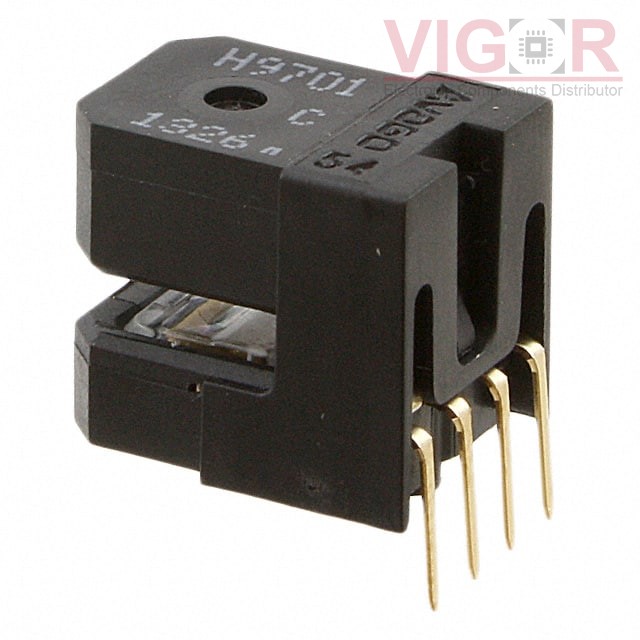

HEDS-9701#C54

Image is for reference,
please contact us to get the real picture

Part No :: HEDS-9701#C54

Manufacturer: Broadcom

Description: ROTARY ENCODER OPTICAL 100PPR

Catalog: Encoders

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: HEDS-9701#C54 PDF

Availability: 0 pieces

Unit Price: ~~$7.72800~~

Current price of HEDS-9701#C54 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HEDS-9701#C54 Specifications

Type	Description
Series:	HEDS
Package:	Bulk
Part Status:	Active
Encoder Type:	Optical
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	100
Voltage - Supply:	5V
Actuator Type:	Codewheel Not Included
Detent:	No
Built in Switch:	No
Mounting Type:	Chassis Mount
Orientation:	Right Angle
Termination Style:	Terminal Pins
Rotational Life (Cycles Min):	-

Please confirm the specifications of the products when ordering.
