L4-0003-0156-05-N-C-N-A-F-A-A2

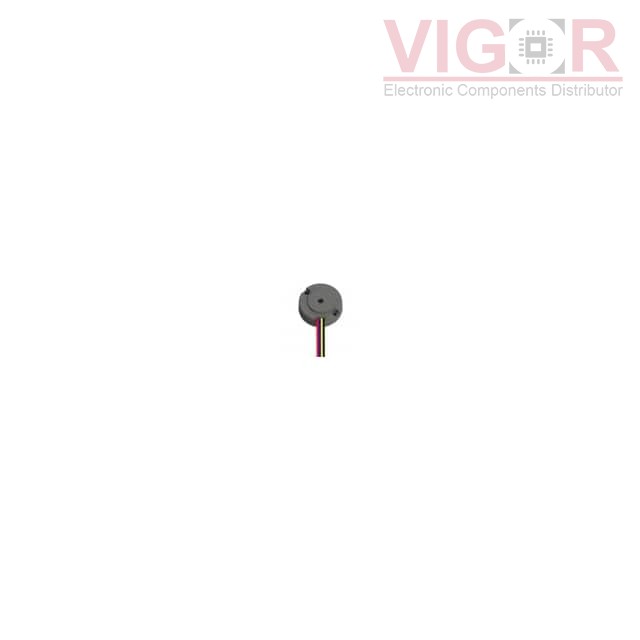

Image is for reference,
please contact us to get the real picture

Part No :: L4-0003-0156-05-N-C-N-A-F-A-A2

Manufacturer: Phoenix America

Description: NON-UNIVERSAL HUB ENCODER KIT

Catalog: Encoders

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: L4-0003-0156-05-N-C-N-A-F-A-A2 PDF

Availability: 0 pieces

Unit Price: ~~$22.79000~~

Current price of L4-0003-0156-05-N-C-N-A-F-A-A2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L4-0003-0156-05-N-C-N-A-F-A-A2 Specifications

Type	Description
Series:	L4
Package:	Bulk
Part Status:	Active
Encoder Type:	Magnetic
Output Type:	Open Collector
Pulses per Revolution:	3
Voltage - Supply:	4V ~ 24V
Actuator Type:	5/32" Open Center
Detent:	No
Built in Switch:	No
Mounting Type:	Chassis Mount, Motors
Orientation:	Vertical
Termination Style:	Connector
Rotational Life (Cycles Min):	-

Please confirm the specifications of the products when ordering.
