DRV5056A1ELPGMQ1

DRV5056A1ELPGMQ1

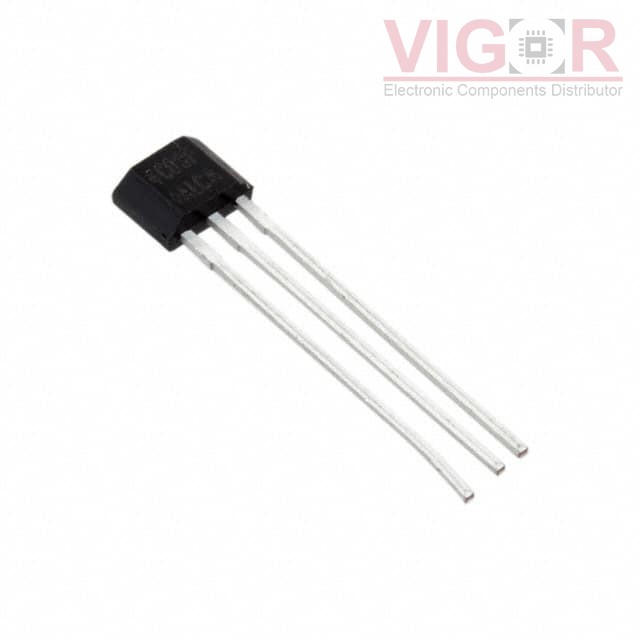

Image is for reference,
please contact us to get the real picture

Part No :

DRV5056A1ELPGMQ1

Manufacturer
Texas Instruments
Description
HALL EFFECT SENSOR
Catalog
Magnetic Sensors - Linear, Compass (ICs)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DRV5056A1ELPGMQ1 PDF
Availability
2770 pieces
Unit Price
$2.56000

Current price of DRV5056A1ELPGMQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DRV5056A1ELPGMQ1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Hall Effect
Axis:Single
Output Type:Analog Voltage
Sensing Range:20mT
Voltage - Supply:3V ~ 3.6V, 4.5V ~ 5.5V
Current - Supply (Max):10mA
Current - Output (Max):1mA
Resolution:-
Bandwidth:20kHz
Operating Temperature:-40°C ~ 150°C (TA)
Features:Temperature Compensated
Supplier Device Package:-
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 (TO-226AA)
