DRV5023AJQLPG

DRV5023AJQLPG

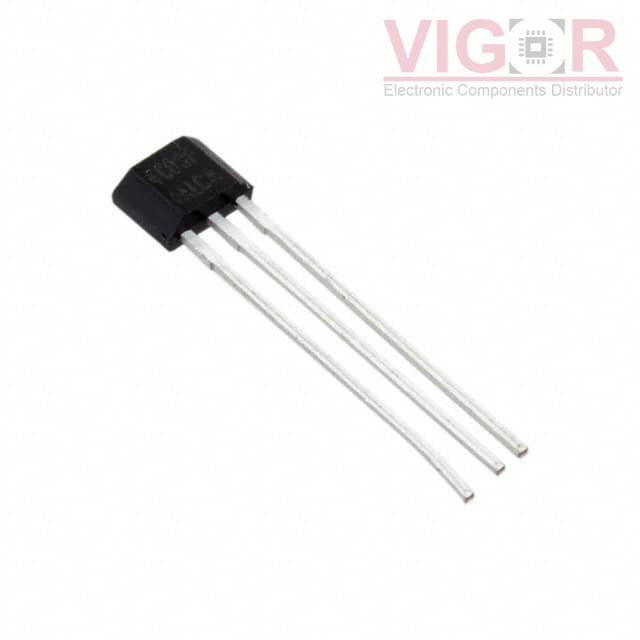

Image is for reference,
please contact us to get the real picture

Part No :

DRV5023AJQLPG

Manufacturer
Texas Instruments
Description
MAGNETIC SWITCH UNIPOLAR TO92-3
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
DRV5023AJQLPG PDF
Availability
742 pieces
Unit Price
$1.24000

Current price of DRV5023AJQLPG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DRV5023AJQLPG Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Bulk
Part Status:Active
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:12mT Trip, 1mT Release
Test Condition:-40°C ~ 125°C
Voltage - Supply:2.5V ~ 38V
Current - Supply (Max):2.7mA (Typ)
Current - Output (Max):30mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Through Hole
Supplier Device Package:TO-92-3
Package / Case:TO-226-3, TO-92-3 Short Body
