AH3763Q-P-A

AH3763Q-P-A

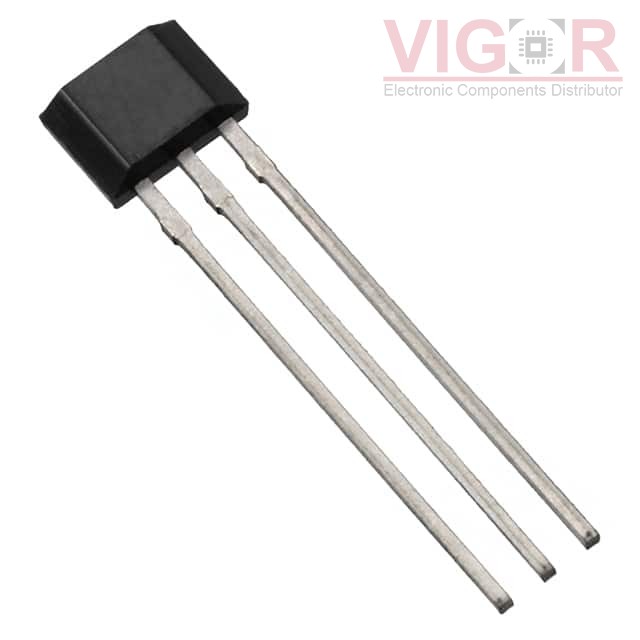

Image is for reference,
please contact us to get the real picture

Part No :

AH3763Q-P-A

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH LATCH 3SIP
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
AH3763Q-P-A PDF
Availability
24000 pieces
Unit Price
$0.40000

Current price of AH3763Q-P-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3763Q-P-A Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Box (TB)
Part Status:Active
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:4.5mT Trip, -4.5mT Release
Test Condition:-40°C ~ 150°C
Voltage - Supply:3V ~ 28V
Current - Supply (Max):4mA
Current - Output (Max):60mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 150°C (TA)
Mounting Type:Through Hole
Supplier Device Package:3-SIP
Package / Case:3-SIP Module
