AH3360-Z-7

AH3360-Z-7

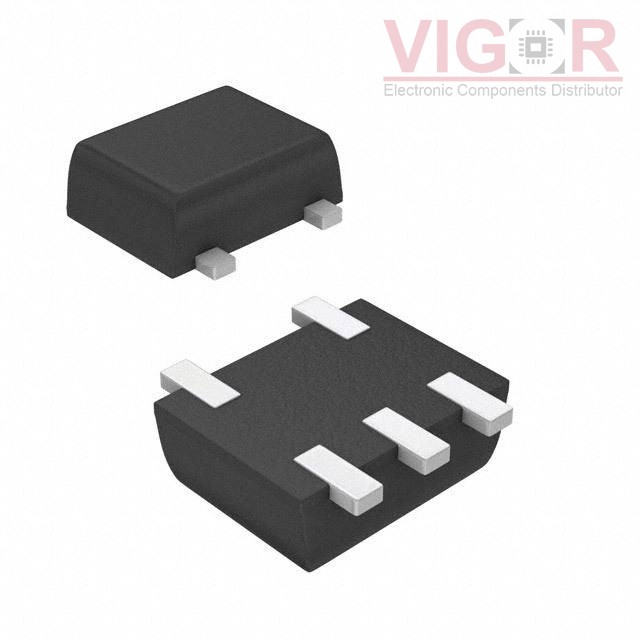

Image is for reference,
please contact us to get the real picture

Part No :

AH3360-Z-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH UNIPOLAR SOT553
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
AH3360-Z-7 PDF
Availability
2081 pieces
Unit Price
$0.70000

Current price of AH3360-Z-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3360-Z-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:4.6mT Trip, 0.9mT Release
Test Condition:-40°C ~ 85°C
Voltage - Supply:1.6V ~ 3.6V
Current - Supply (Max):8µA
Current - Output (Max):3mA
Output Type:Push-Pull
Features:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SOT-553
Package / Case:SOT-553
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
