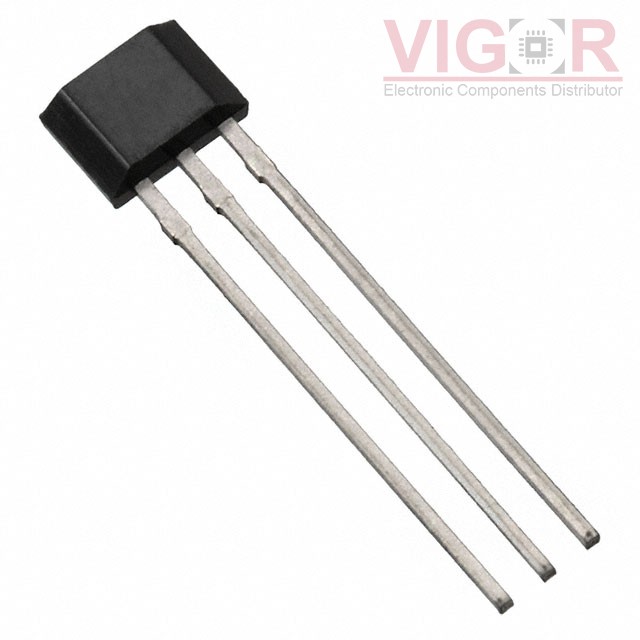

AH3564Q-P-B

AH3564Q-P-B

Image is for reference,
please contact us to get the real picture

Part No :

AH3564Q-P-B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
HALL OMNIPOLAR SWITCH,SIP-3,BULK
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
AH3564Q-P-B PDF
Availability
56313000 pieces
Unit Price
$0.75000

Current price of AH3564Q-P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3564Q-P-B Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Bulk
Part Status:Active
Function:Omnipolar Switch
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:±6mT Trip, ±1mT Release
Test Condition:-40°C ~ 125°C
Voltage - Supply:3V ~ 28V
Current - Supply (Max):4mA
Current - Output (Max):55mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Through Hole
Supplier Device Package:3-SIP
Package / Case:3-SSIP
