A1160LLHLT-T

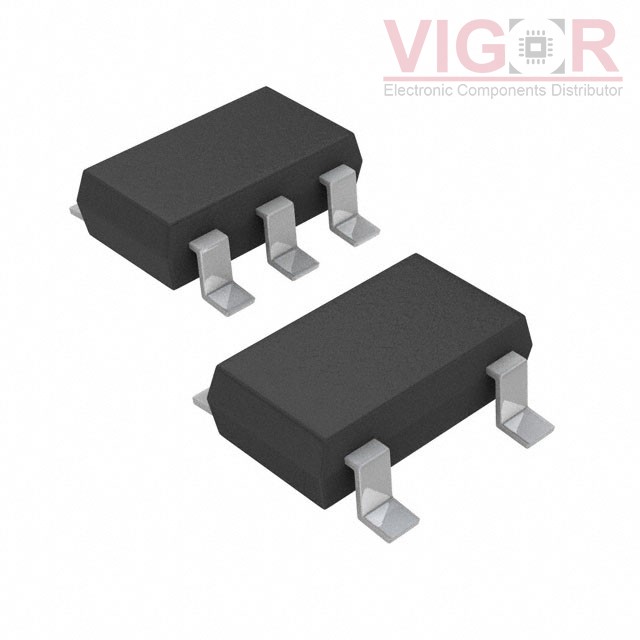

Image is for reference,
please contact us to get the real picture

Part No :: A1160LLHLT-T

Manufacturer: Allegro MicroSystems

Description: MAGNETIC SWITCH UNIPOL SOT23W-5

Catalog: Magnetic Sensors - Switches (Solid State)

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: A1160LLHLT-T PDF

Availability: 2435 pieces

Unit Price: ~~$1.29000~~

Current price of A1160LLHLT-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

A1160LLHLT-T Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Function:	Unipolar Switch
Technology:	Hall Effect
Polarization:	South Pole
Sensing Range:	24.5mT Trip, 6mT Release
Test Condition:	-40°C ~ 150°C
Voltage - Supply:	3.8V ~ 24V
Current - Supply (Max):	5mA
Current - Output (Max):	25mA
Output Type:	Open Drain
Features:	-
Operating Temperature:	-40°C ~ 150°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23W-5
Package / Case:	SOT-23-5 Thin, TSOT-23-5

Please confirm the specifications of the products when ordering.
