AH1389-HK4-7

AH1389-HK4-7

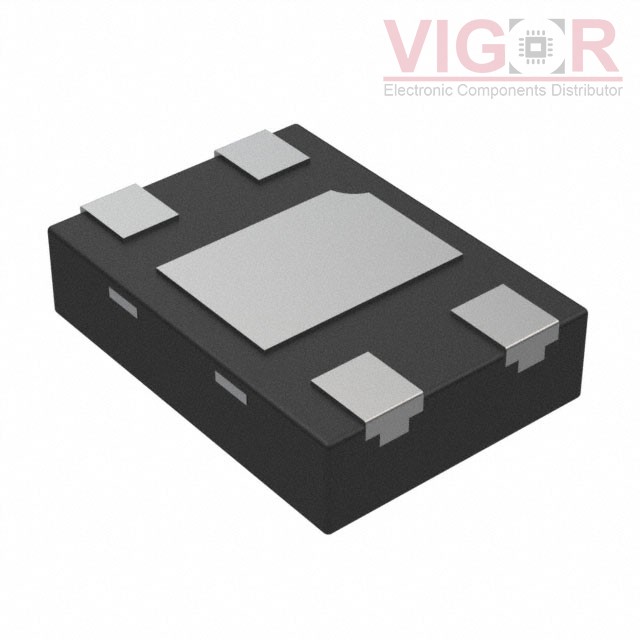

Image is for reference,
please contact us to get the real picture

Part No :

AH1389-HK4-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SW UNIPOLAR X2DFN1410-4
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
AH1389-HK4-7 PDF
Availability
1402232000 pieces
Unit Price
$0.80000

Current price of AH1389-HK4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH1389-HK4-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Unipolar Switch, Dual
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:-25mT Trip, -20mT Release, 25mT Trip, 20mT Release
Test Condition:25°C
Voltage - Supply:1.6V ~ 3.6V
Current - Supply (Max):2.1mA
Current - Output (Max):2.5mA
Output Type:Push-Pull
Features:Sleep Mode
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Supplier Device Package:X2-DFN1410-4
Package / Case:4-XFDFN Exposed Pad
