TLE49161KHTSA1

TLE49161KHTSA1

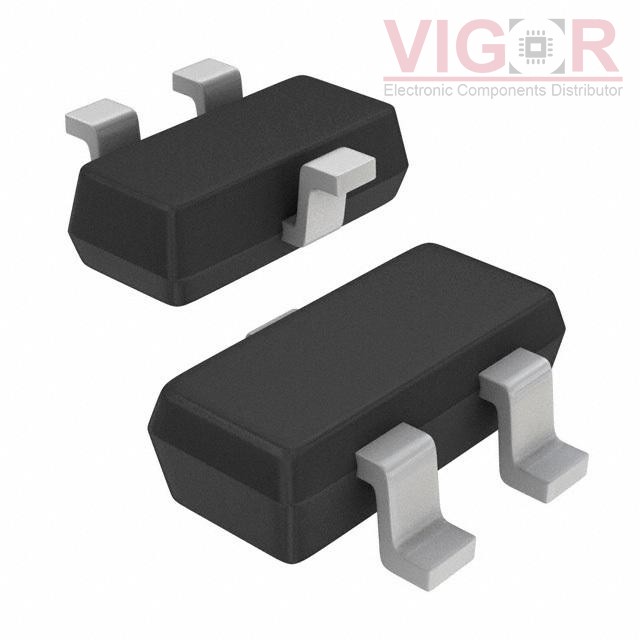

Image is for reference,
please contact us to get the real picture

Part No :

TLE49161KHTSA1

Manufacturer
IR (Infineon Technologies)
Description
MAGNETIC SWITCH LATCH SC59
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
TLE49161KHTSA1 PDF
Availability
0 pieces
Unit Price
$0.25000

Current price of TLE49161KHTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE49161KHTSA1 Specifications
Type Description
Series:TLE
Package:Tape & Reel (TR)
Part Status:Discontinued at Digi-Key
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:5mT Trip, -5mT Release
Test Condition:25°C
Voltage - Supply:2.4V ~ 5V
Current - Supply (Max):10µA
Current - Output (Max):2mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-59
Package / Case:TO-236-3, SC-59, SOT-23-3
