AH1806-P-A

AH1806-P-A

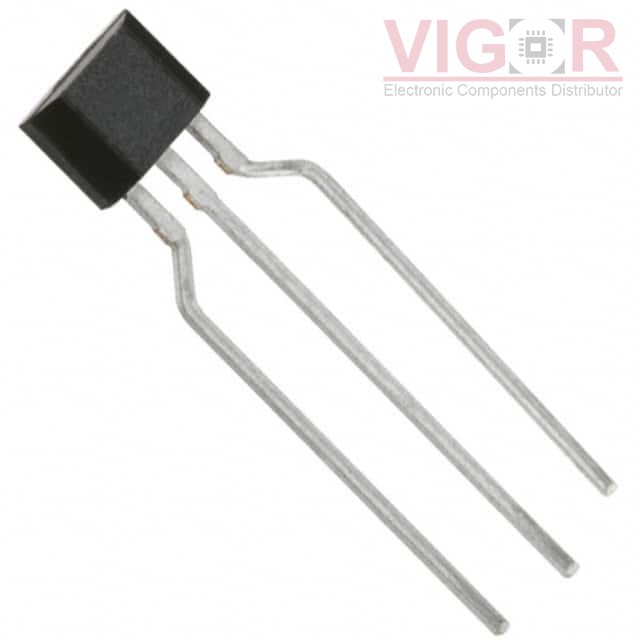

Image is for reference,
please contact us to get the real picture

Part No :

AH1806-P-A

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH OMNIPOLAR 3SIP
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
AH1806-P-A PDF
Availability
471316000 pieces
Unit Price
$0.75000

Current price of AH1806-P-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH1806-P-A Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Active
Function:Omnipolar Switch
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:±4.5mT Trip, ±4mT Release
Test Condition:25°C
Voltage - Supply:2.5V ~ 5.5V
Current - Supply (Max):16µA
Current - Output (Max):2.5mA
Output Type:Open Drain
Features:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Through Hole
Supplier Device Package:3-SIP
Package / Case:3-SIP
