AN48841B-NL

AN48841B-NL

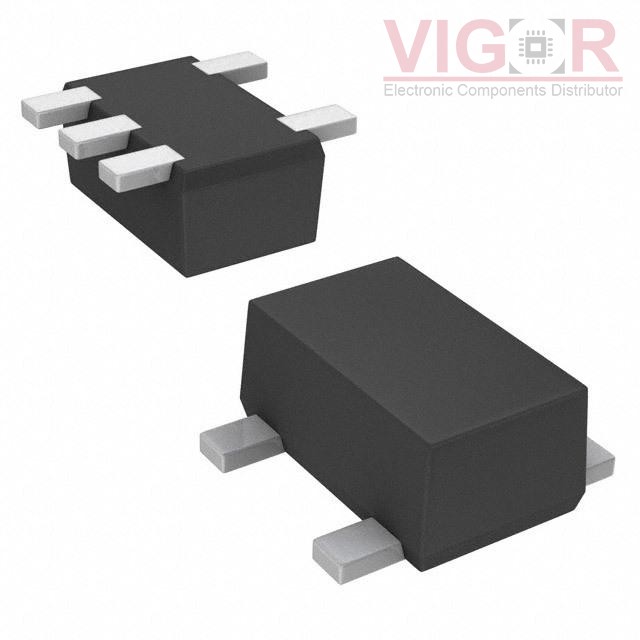

Image is for reference,
please contact us to get the real picture

Part No :

AN48841B-NL

Manufacturer
Panasonic
Description
MAGNET SWITCH BIPOLAR SMINI-5DE
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
AN48841B-NL PDF
Availability
5934 pieces
Unit Price
$1.79000

Current price of AN48841B-NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AN48841B-NL Specifications
Type Description
Series:AN488xx
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Function:Bipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:8mT Trip, -8mT Release
Test Condition:25°C
Voltage - Supply:2.5V ~ 5.25V
Current - Supply (Max):70µA
Current - Output (Max):2mA
Output Type:Push-Pull
Features:-
Operating Temperature:-25°C ~ 75°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SMINI-5DE
Package / Case:6-SMD (5 Leads), Flat Lead
