TLE49761KHTSA1

TLE49761KHTSA1

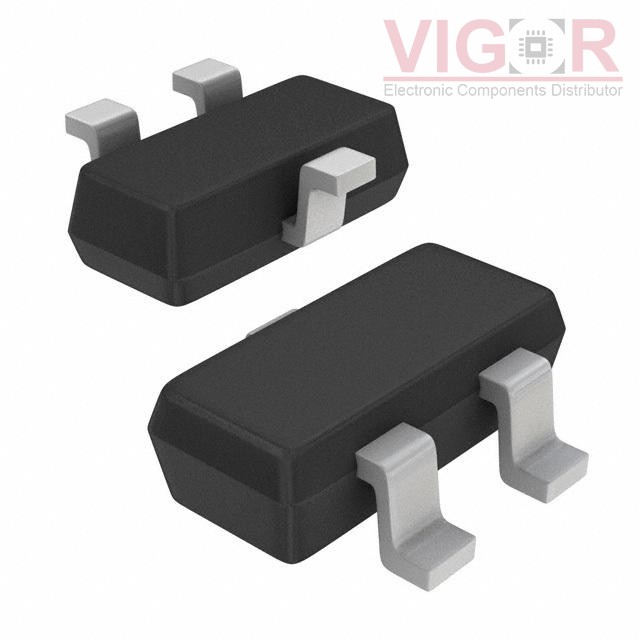

Image is for reference,
please contact us to get the real picture

Part No :

TLE49761KHTSA1

Manufacturer
IR (Infineon Technologies)
Description
MAGNETIC SWITCH UNIPOLAR SC59
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
TLE49761KHTSA1 PDF
Availability
2691 pieces
Unit Price
$0.74000

Current price of TLE49761KHTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE49761KHTSA1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:11mT Trip, 5mT Release
Test Condition:-40°C ~ 150°C
Voltage - Supply:3V ~ 18V
Current - Supply (Max):17mA
Current - Output (Max):-
Output Type:Open Collector
Features:Temperature Compensated
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-59
Package / Case:TO-236-3, SC-59, SOT-23-3
