AH3774-SA-7

AH3774-SA-7

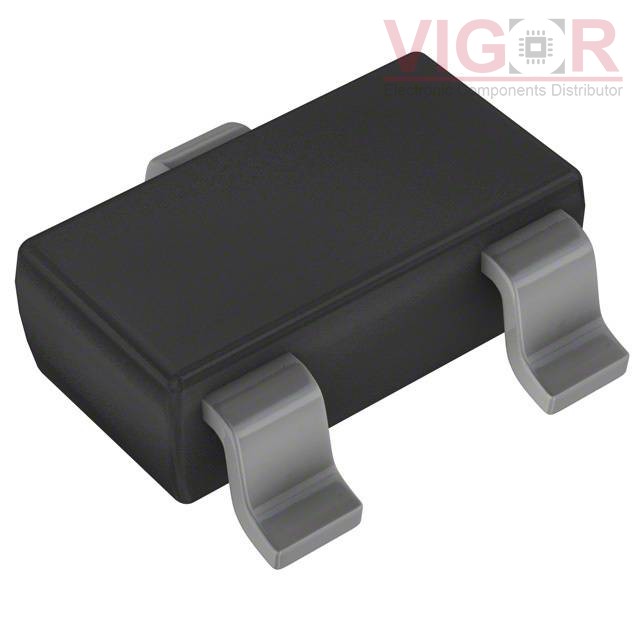

Image is for reference,
please contact us to get the real picture

Part No :

AH3774-SA-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH LATCH SOT23-3
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
AH3774-SA-7 PDF
Availability
0 pieces
Unit Price
$0.73000

Current price of AH3774-SA-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3774-SA-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:6mT Trip, -6mT Release
Test Condition:-40°C ~ 125°C
Voltage - Supply:3V ~ 28V
Current - Supply (Max):4mA
Current - Output (Max):60mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:TO-236-3, SC-59, SOT-23-3
