AH1802-SNG-7

AH1802-SNG-7

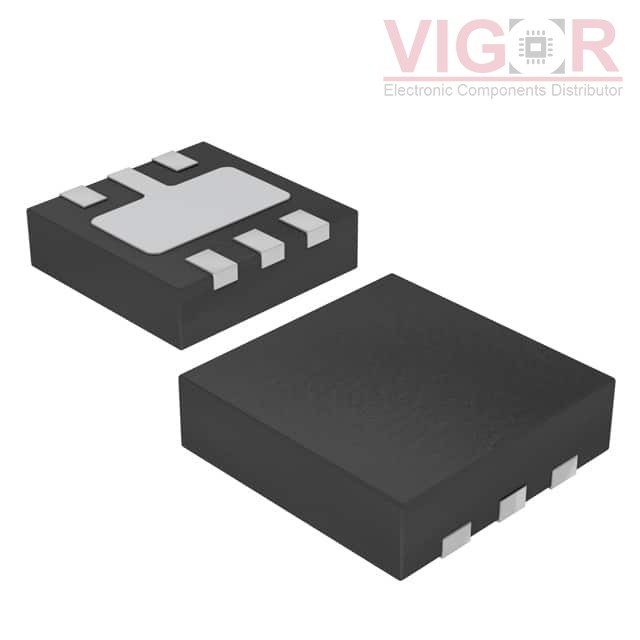

Image is for reference,
please contact us to get the real picture

Part No :

AH1802-SNG-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH OMNIPOLAR 6DFN
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
AH1802-SNG-7 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AH1802-SNG-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH1802-SNG-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Function:Omnipolar Switch
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:±4mT Trip, ±1mT Release
Test Condition:25°C
Voltage - Supply:2.5V ~ 5.5V
Current - Supply (Max):16µA
Current - Output (Max):-
Output Type:Open Drain
Features:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:U-DFN2020-6
Package / Case:6-UDFN Exposed Pad
