TCS20DLR,LF

TCS20DLR,LF

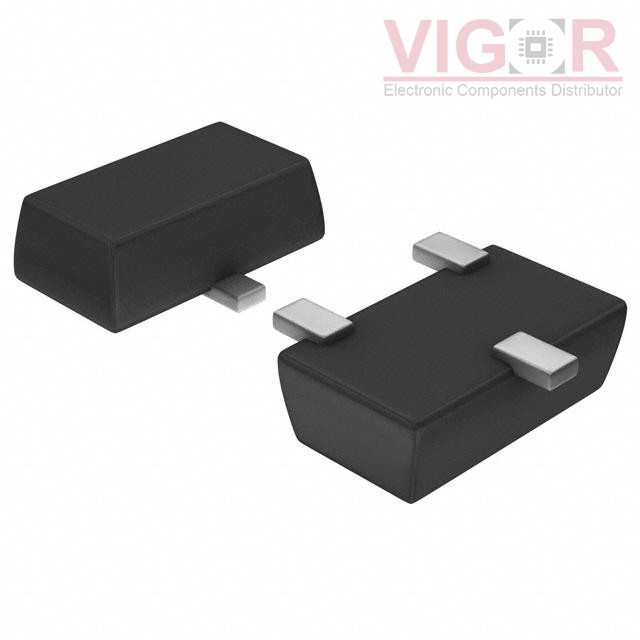

Image is for reference,
please contact us to get the real picture

Part No :

TCS20DLR,LF

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
MAGNETIC SWITCH OMNIPOLAR SOT23F
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
TCS20DLR,LF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TCS20DLR,LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TCS20DLR,LF Specifications
Type Description
Series:TCS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Function:Omnipolar Switch
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:±4.4mT Trip, ±0.9mT Release
Test Condition:25°C
Voltage - Supply:2.3V ~ 5.5V
Current - Supply (Max):1.6mA (Typ)
Current - Output (Max):5mA
Output Type:Open Drain
Features:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23F
Package / Case:SOT-23-3 Flat Leads
