PNA2W01M

PNA2W01M

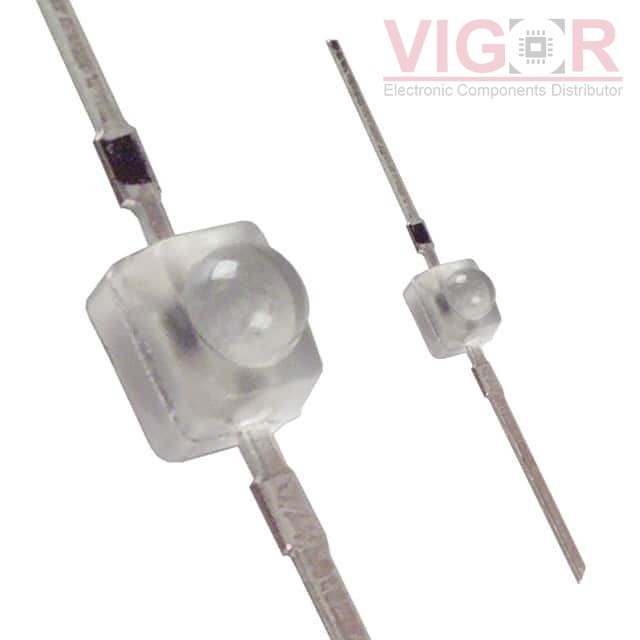

Image is for reference,
please contact us to get the real picture

Part No :

PNA2W01M

Manufacturer
Panasonic
Description
SENSOR PHOTO 800NM TOP VIEW AXL
Catalog
Optical Sensors - Phototransistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
PNA2W01M PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PNA2W01M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PNA2W01M Specifications
Type Description
Series:-
Package:-
Part Status:Obsolete
Voltage - Collector Emitter Breakdown (Max):20 V
Current - Collector (Ic) (Max):30 mA
Current - Dark (Id) (Max):500 nA
Wavelength:800nm
Viewing Angle:36°
Power - Max:100 mW
Mounting Type:Through Hole
Orientation:Top View
Operating Temperature:-
Package / Case:Axial, Flat Leads
