AS5270A-HMFM

AS5270A-HMFM

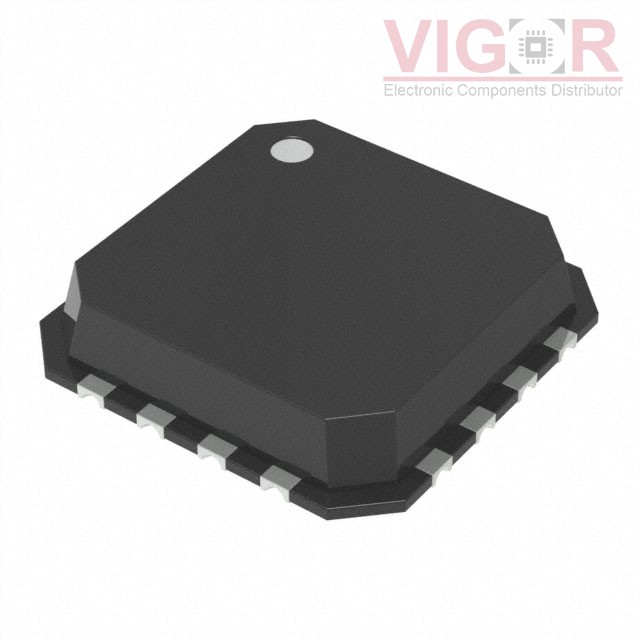

Image is for reference,
please contact us to get the real picture

Part No :

AS5270A-HMFM

Manufacturer
ams
Description
SENSOR ANGLE 90DEG SURFACE MOUNT
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
AS5270A-HMFM PDF
Availability
785 pieces
Unit Price
$7.97000

Current price of AS5270A-HMFM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AS5270A-HMFM Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:Angle
Technology:Hall Effect
Rotation Angle - Electrical, Mechanical:90° (±45°)
Linear Range:-
Output:Analog Voltage
Output Signal:Clockwise Increase
Actuator Type:External Magnet, Not Included
Linearity:-
Resistance:-
Resistance Tolerance:-
Voltage - Supply:4.5V ~ 5.5V
Mounting Type:Surface Mount
Termination Style:SMD (SMT) Tab
Operating Temperature:-40°C ~ 150°C
Package / Case:16-VQFN Exposed Pad
Supplier Device Package:16-MLP (6x6)
