AN101101

AN101101

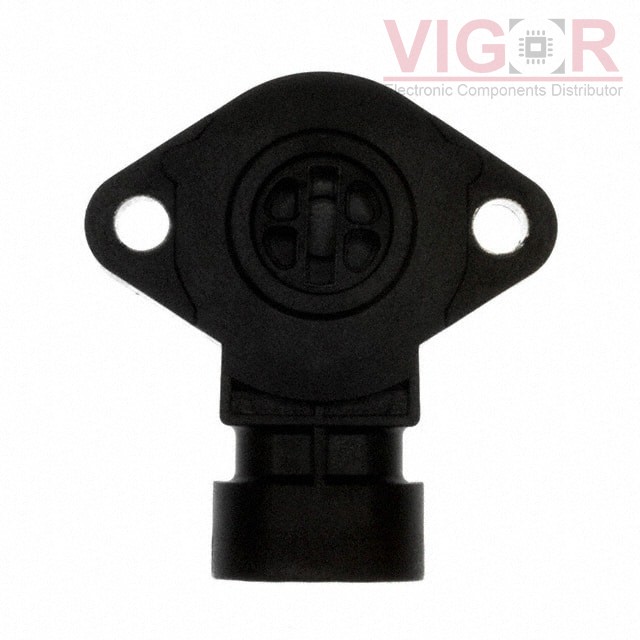

Image is for reference,
please contact us to get the real picture

Part No :

AN101101

Manufacturer
ZF Electronics
Description
SENSOR ROTARY 120 DEG CONNECTOR
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
AN101101 PDF
Availability
0 pieces
Unit Price
$36.50000

Current price of AN101101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AN101101 Specifications
Type Description
Series:AN1
Package:Bulk
Part Status:Active
For Measuring:Rotary Position
Technology:Magnetoresistive
Rotation Angle - Electrical, Mechanical:5° ~ 85°, 0° ~ 120°
Linear Range:-
Output:Analog Voltage
Output Signal:Counterclockwise Increase
Actuator Type:Slotted Shaft
Linearity:±2%
Resistance:-
Resistance Tolerance:-
Voltage - Supply:5V
Mounting Type:Chassis Mount
Termination Style:Connector
Operating Temperature:-40°C ~ 125°C
Package / Case:Box with Connector
Supplier Device Package:-
