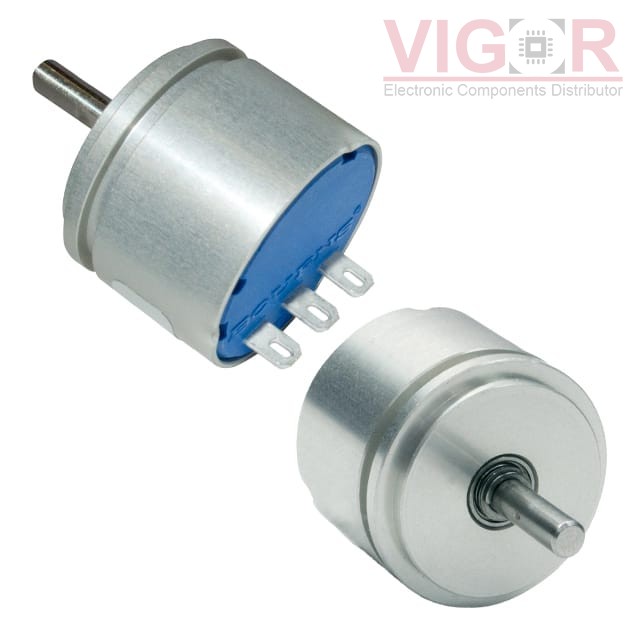

AMS22U5A1BLARL105

Image is for reference,
please contact us to get the real picture

Part No :: AMS22U5A1BLARL105

Manufacturer: J.W. Miller / Bourns

Description: SENSOR ROTARY 50DEG SOLDER LUG

Catalog: Position Sensors - Angle, Linear Position Measuring

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: AMS22U5A1BLARL105 PDF

Availability: 8 pieces

Unit Price: ~~$56.00000~~

Current price of AMS22U5A1BLARL105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMS22U5A1BLARL105 Specifications

Type	Description
Series:	AMS22U
Package:	Bulk
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	10° ~ 50°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Counterclockwise Increase
Actuator Type:	Round Shaft
Linearity:	±0.5%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Operating Temperature:	-40°C ~ 125°C
Package / Case:	Module, Round Shaft
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
