3382G-1-503G

3382G-1-503G

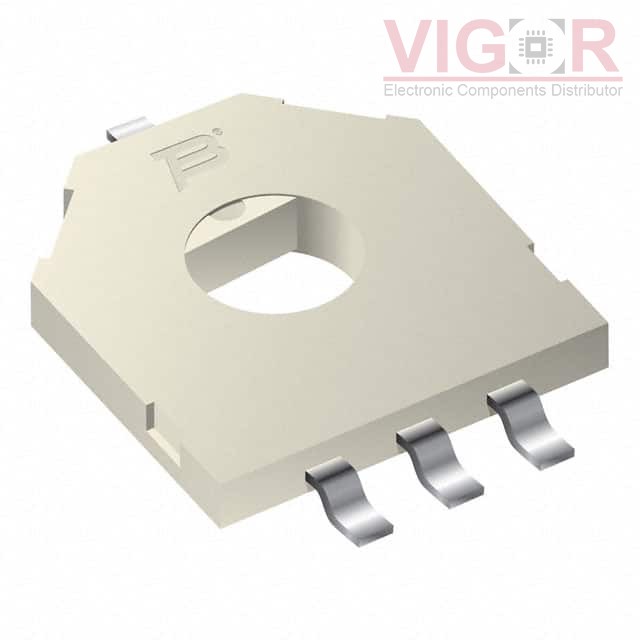

Image is for reference,
please contact us to get the real picture

Part No :

3382G-1-503G

Manufacturer
J.W. Miller / Bourns
Description
SENSOR ROTARY 330DEG SMD
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
3382G-1-503G PDF
Availability
349 pieces
Unit Price
$2.22000

Current price of 3382G-1-503G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3382G-1-503G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:Rotary Position
Technology:Resistive
Rotation Angle - Electrical, Mechanical:0° ~ 330°, Continuous
Linear Range:-
Output:Resistive
Output Signal:Clockwise Increase
Actuator Type:Hole for Shaft
Linearity:±2%
Resistance:50 kOhms
Resistance Tolerance:±30%
Voltage - Supply:-
Mounting Type:Surface Mount
Termination Style:SMD (SMT) Tab
Operating Temperature:-40°C ~ 120°C
Package / Case:4-SMD, Gull Wing
Supplier Device Package:-
